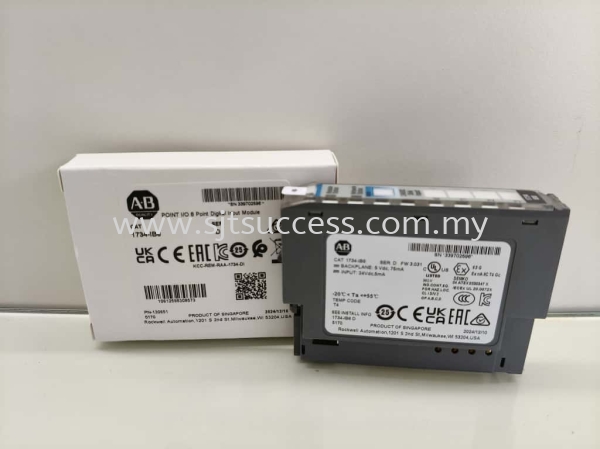

Allen Bradley 1734-IB8 Malaysia
The Allen-Bradley 1734-IB8 is a POINT IO module
Technical specifications
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | Point I/O 1734 |
| Part Number | 1734-IB8 |
| Weight | 0.13 lbs (0.06 kg) |
| Power Dissipation | 1.6 Watt/5.5 BTU/hour |
| POINTBus Current | 75 mA |
| Input Voltage | 24 Volts DC |
| Module Type | Digital DC Sinking Input |
| Series | POINT I/O |
| No. of Inputs | 8; Sinking input |
| Input Voltage range | 10-28.8VDC |
| Input Current range | 2-5mA |
| Input Current, nominal | 4mA @24VDC |
| Input Filter Time | 0.5 ms hardware plus 0...63 ms (user-selectable) |
| Enclosure type rating | None (open-style) |
| Keyswitch position | 1 |
| Module Location | 1734-TB or 1734-TBS wiring base assembly |
| Module Status indicators | 1 green/red, logic side |
| Input status indicators | 8 yellow, logic side |
| Inputs | 8 |
| Input Current Maximum | 5 milliamps |
