Allen Bradley 1734-IE8C Malaysia

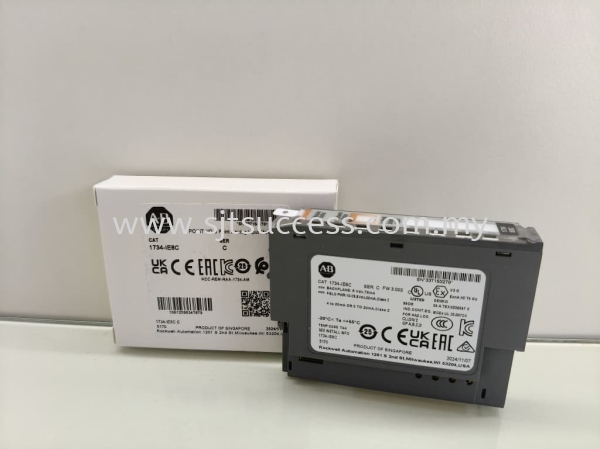

The Allen-Bradley 1734-IE8C is a POINT I/O Analog Input Module.
Technical specifications
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | Point I/O 1734 |
| Part Number | 1734-IE8C |
| UPC | 612598347872 |
| Weight | 0.25 lbs (0.11 kg) |
| Series | POINT I/O |
| Module Type | Analog Input Module |
| Inputs | Eight (8) single-ended, non-isolated |
| Input Conversion Type | Sigma Delta |
| Signal Type | Current |
| Input Signal Range | 4…20 mA 0…20 mA |
| Input Resolution | 16 bits across 0 to 21 mA |
| Conversion Type | Delta Sigma |
| Absolute Accuracy | 0.1% Full Scale @ 25 °C |
| Data format | Signed Integer |
| Channel-level diagnostics | Yes |
| Resolution | 16 bits – over 0…21 mA 0.32 ?A/cnt |
| Terminal base | 1734-TB3, 1734-TB3S wiring base assembly |
| Power Dissipation | 0.6 W @ 28.8V DC |
| Thermal Dissipation | 2.0 BTU/hr @ 28.8V DC |
