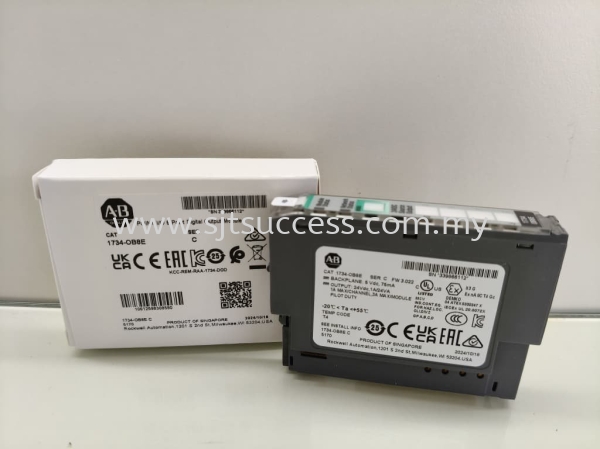

Allen Bradley 1734-OB8E Malaysia
1734-OB8E is a protected discrete input module that is part of Allen-Bradley’s POINT IO product family.
Technical specifications
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | Point I/O 1734 |
| Part Number | 1734-OB8E |
| Weight | 0.06 lbs (0.03 kg) |
| Power Dissipation | 2.0 W |
| Module Type | Discrete output module |
| Series | POINT I/O |
| No. of outputs | Eight (8), |
| No. of groups | 1 group of 8 |
| Output signal | 10-28.8 VDC |
| Output current per point | 0.041666667 |
| Output current per module | 3 A |
| Surge current | 2 A for 10 ms, repeatable every 3 s |
| Current Draw | 75 mA @5V dc |
| Enclosure type rating | None (open-style) |
| Module Location | 1734-TB or 1734-TBS |
| Outputs | 8 |
| Output Voltage | 24 Volts DC |
| Electronically Protected | Yes |
| POINTBus Current | 75 milliamps |
| Output Current | 3 amps/module |
| Thermal Dissipation | 6.8 BTU/hour |
| Key Switch Position | 1 |
| UPC | 10612598308580 |
