-Effective liquid removal and positive solid filtration
-Large filter element area for minimum pressure drop
-Quick release bayonet bowl

Technical Details

Medium	Compressed air
Operating Temperature	-20 ... 80 °C, -4 ... 176 °F
Port Size	Without Yoke
Drain Type	Automatic drain
Filter Element	5 μm
Maximum Inlet Pressure	17 bar, 247 psi
Flow	75 dm3/sec, 159 scfm
Materials - Body	Zinc alloy
Materials - Bowl	Aluminium alloy
Materials - Elastomers	Nitrile rubber (NBR)
Materials - Filter Element	Polypropylene (PP)
Dimensions - Height	223 mm
Dimensions - Length	72 mm
Dimensions - Width	71 mm
Weight	0.94 kg
Country of Origin	Czechia, Australia

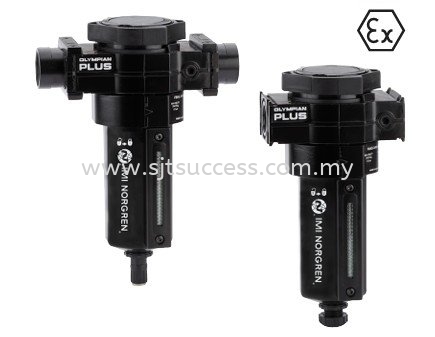

Range	F64G
Series	Olympian Plus
Brand	IMI Norgren
