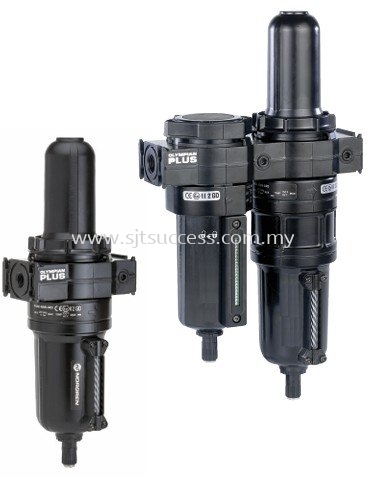

-F64L are ‘dual function’ products incorporating an oil removal element (bottom) and an oil vapour removal element (top)
-Ultra high efficiency coalescing filters with active carbon pack

Technical Details

Medium	Compressed air
Operating Temperature	-20 ... 65 °C, -4 ... 149 °F
Port Size	Without Yoke
Drain Type	Automatic drain
Filter Element	0.01 μm
Maximum Inlet Pressure	17 bar, 247 psi
Flow	16.3 dm3/sec, 34.5 scfm
Materials - Body	Zinc alloy
Materials - Bowl	Aluminium alloy
Materials - Elastomers	Nitrile rubber (NBR)
Materials - Filter Element	Polyethylene (PE), Activated carbon
Dimensions - Height	71 mm
Dimensions - Length	352 mm
Dimensions - Width	71 mm
Weight	1.96 kg
Country of Origin	Czechia
Range	F64L
Series	Olympian Plus
Brand	IMI Norgren
