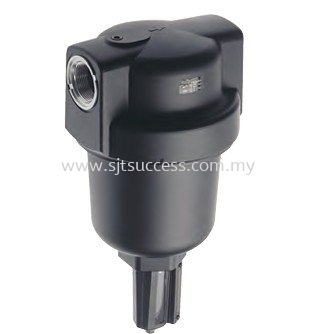

-Direct ported filter with high water removal efficiency
-High flow with minimal pressure drop
-Highly visible prismatic liquid level indicator lens
-Two gauge ports on top of the body for installation of pressure gauges

Technical Details

Medium	Compressed air
Operating Temperature	-34 ... 80 °C, -29 ... 176 °F
Port Size	G2
Drain Type	Automatic drain
Filter Element	40 μm
Maximum Inlet Pressure	17 bar, 247 psi
Flow	765 dm3/sec, 1621 scfm
Materials - Body	Aluminium alloy
Materials - Bowl	Aluminium alloy
Materials - Elastomers	Nitrile rubber (NBR)
Materials - Filter Element	Bronze
Dimensions - Height	207 mm
Dimensions - Length	431 mm
Dimensions - Width	209 mm
Weight	6.6 kg
Country of Origin	Mexico
Range	F18
Brand	IMI Norgren
