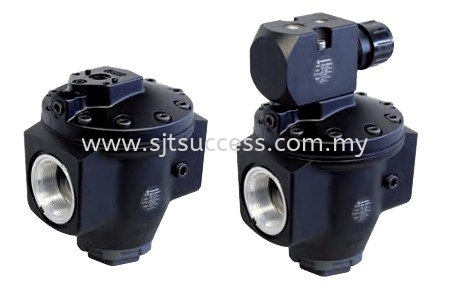

-Balanced valve minimises effect of changes in inlet pressure on outlet pressure
-Constant bleed feature in pilot regulator provides quick response and minimum dead-band
-Exceptionally high relief flow
-Supplied without pilot regulator

Technical Details

Medium	Compressed air
Operating Temperature	-20 ... 80 °C, -4 ... 176 °F
Port Size	G2
Gauge Port	Rc1/4
Adjustment	Air pilot operated
Maximum Inlet Pressure	31 bar, 450 psi
Outlet Pressure Adjustment	0.16 ... 17 bar, 2.3 ... 246 psi
Relieving / Non Relieving	Relieving
Flow	944 dm3/sec, 2000 scfm
Materials - Body	Aluminium alloy
Materials - Bonnet	Aluminium alloy
Materials - Elastomers	Nitrile rubber (NBR)
Dimensions - Height	140 mm
Dimensions - Length	184 mm
Dimensions - Width	152 mm
Weight	2.99 kg
Country of Origin	United States, Mexico
Range	R18
Brand	IMI Norgren
