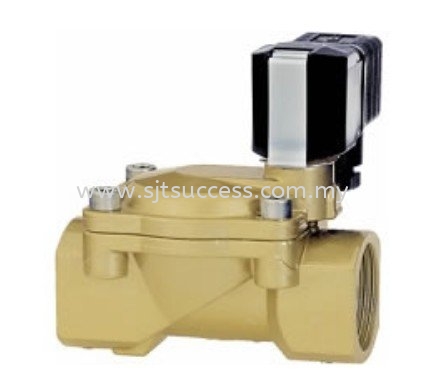

Norgren 8240700.9101.024.00 Solenoid Valve Malaysia
IMI NORGREN MALAYSIA NORGREN SOLENOID VALVE NORGREN 82400 8240700.9101.024.00 MALAYSIA 8240700.9101.024.00 PRICE
-High flow rate
-Damped operation
-Clear compact design
-Solenoid interchangeable without tools (Click-on®)
-Particularly suitable for use as water valve in accordance with DIN EN 60730-2-8
Technical Details
-Damped operation
-Clear compact design
-Solenoid interchangeable without tools (Click-on®)
-Particularly suitable for use as water valve in accordance with DIN EN 60730-2-8
Technical Details
| Medium | Gases, Liquids |
|---|---|
| Operating Temperature | -10 ... 50 °C, 14 ... 122 °F |
| Operating Pressure | 0.1 ... 10 bar, 1.45 ... 145 psi |
| Port Size | G2 |
| Actuation | Solenoid pilot / Spring return |
| Coil Code | 9101 |
| Function | NC |
| Nominal Diameter | 50 mm |
| Valve operation | 2/2 |
| CV Body | 47.4 cv |
| Flow | 683 l/m, 24.1 scfm |
| Materials - Body | Brass |
| Materials - Elastomers | Nitrile rubber (NBR) |
| Certification - IP Rating | IP65 |
| Dimensions - Height | 109 mm |
| Dimensions - Length | 142.5 mm |
| Dimensions - Width | 160 mm |
| Weight | 3.98 kg |
| Country of Origin | Germany |
| Range | 82400 |
| Brand | IMI Buschjost |
