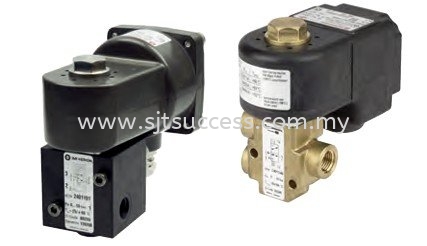

Norgren 2401103 Direct Solenoid Actuated Poppet Valve Malaysia
-Main application: single operated process actuators
-TÜV-approval based on IEC 61 508, DIN V 19 251. Approvals: DIN EN 161/3394 DVGW, group Rm and EN 13611
-Valves for safety systems to SIL 3 or AK 7
-Standard NAMUR type manifold system for easy assembly
-Redundancy: 1 of 2, 2 of 3
-Valve switches at power failure into starting position (mechanical return spring)
-Rest position in the event of power failure provided by mechanical return spring
-These solenoids are ATEX approved
-Suitable for outdoor use under critical environment conditions (see solenoid list)
Technical Details
-TÜV-approval based on IEC 61 508, DIN V 19 251. Approvals: DIN EN 161/3394 DVGW, group Rm and EN 13611
-Valves for safety systems to SIL 3 or AK 7
-Standard NAMUR type manifold system for easy assembly
-Redundancy: 1 of 2, 2 of 3
-Valve switches at power failure into starting position (mechanical return spring)
-Rest position in the event of power failure provided by mechanical return spring
-These solenoids are ATEX approved
-Suitable for outdoor use under critical environment conditions (see solenoid list)
Technical Details
| Medium | Compressed air |
|---|---|
| Operating Temperature | -40 ... 80 °C, -40 ... 176 °F |
| Operating Pressure | 0 ... 10 bar, 0 ... 145 psi |
| Standard | SIL3 |
| Port Size | G1/4 |
| Actuation | Direct solenoid / Spring return |
| Valve operation | 3/2 |
| Flow | 340 l/m |
| Materials - Body | Brass |
| Materials - Elastomers | Nitrile rubber (NBR) |
| Dimensions - Height | 50 mm |
| Dimensions - Length | 50 mm |
| Dimensions - Width | 110 mm |
| Weight | 1.1 kg |
| Country of Origin | Czechia, Germany |
| Range | 24011 |
| Brand | IMI Herion |
