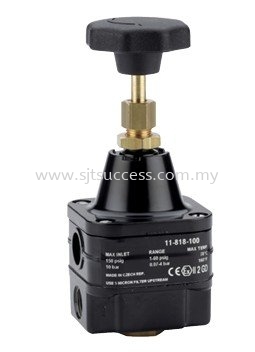

-Precision instruments with integral pilot to ensure very close pressure control in a compact form
-Panel mounting facility

Technical Details

Medium	Compressed air
Operating Temperature	0 ... 70 °C, 32 ... 158 °F
Port Size	G1/4
Adjustment	Knob
Maximum Inlet Pressure	8 bar, 116 psi
Outlet Pressure Adjustment	0.02 ... 0.5 bar, 0.3 ... 7 psi
Relieving / Non Relieving	Relieving
Flow	5.7 dm3/sec, 12 scfm
Materials - Adjusting Knob	Acetal
Materials - Body	Zinc alloy
Materials - Bonnet	Zinc alloy
Materials - Elastomers	Nitrile rubber (NBR)
Dimensions - Height	54 mm
Dimensions - Length	127 mm
Dimensions - Width	54 mm
Weight	0.643 kg
Country of Origin	Czechia, Mexico
Range	11-818
Brand	IMI Norgren
