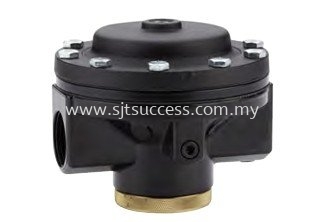

Norgren 11-808-130 Pilot Operated Regulator Malaysia
IMI NORGREN MALAYSIA NORGREN REGULATOR MALAYSIA 11-808-130 MALAYSIA 11-808-130 PRICE 11-808 MALAYSIA
— Port size: 3/4”, 1” (ISO G/ PTF)
— Can be installed at any point in the compressed air system without regard to accessibility pilot regulator can be installed in the most convenient location
— Constant bleed type
Technical features
Medium: Compressed air only
Maximum inlet pressure: 20 bar (290 psi) maximum
Ports size: 3/4”, 1”
Pilot port: Rc 1/4
Gauge port: Rc1/8 Flow: See table below Relieving: Standard
Ambient/Media temperature:-20 ... +80°C (-4° ... +176°F) Version with gauge: -20° ... +65°C (-4° ... +149°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Materials: Body: Zinc Bonnet: Aluminium Valve: Brass Elastomers: NBR
— Can be installed at any point in the compressed air system without regard to accessibility pilot regulator can be installed in the most convenient location
— Constant bleed type
Technical features
Medium: Compressed air only
Maximum inlet pressure: 20 bar (290 psi) maximum
Ports size: 3/4”, 1”
Pilot port: Rc 1/4
Gauge port: Rc1/8 Flow: See table below Relieving: Standard
Ambient/Media temperature:-20 ... +80°C (-4° ... +176°F) Version with gauge: -20° ... +65°C (-4° ... +149°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Materials: Body: Zinc Bonnet: Aluminium Valve: Brass Elastomers: NBR
