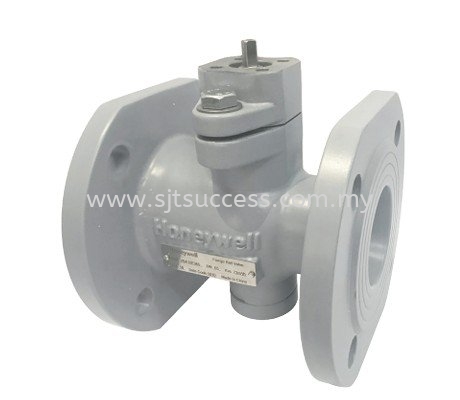

The VBA16F-series of two-way control ball valves

Features
-Equal percentage flow characteristic
-Low leakage rate
-Low driving torque
-Stainless steel ball and stem
-V-shaped ball
-High flow capacity

Specifications

Size (mm)	125
Model	VBA16F125
Nominal pressure	PN16
Flow characteristics	Equal percentage
Rangeability	100:1
Leakage rate	≤0.01% Kvs of (ANSI/FCI 702 Class IV)
Threaded connection	BSPP
Medium	Hot and cold water or neutral liquid
Medium temperature	-5…120°C
Flow coefficient Kvs(m³/h)	250
Close-off pressure (KPa)	700
Actuator torque (N•m)	34(MVN..34)
Weight (Kg)	20.5
