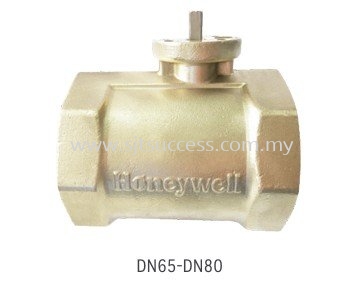

Honeywell VBA16P080 Control Ball Valve Malaysia
The VBA16P-series of two-way control ball valves can be used in the HVAC water systems of commercial and public buildings to achieve modulating or On/Off control.
Specifications
Specifications
| Size (mm) | 80 |
| Model | VBA16P080 |
| Nominal pressure | PN16 |
| Flow characteristics | Equal percentage |
| Rangeability | 100:1 |
| Leakage rate | ≤0.01% Kvs of (ANSI/FCI 702 Class IV) |
| Threaded connection | BSPP |
| Medium | Hot and cold water or neutral liquid |
| Medium temperature | -5…120°C |
| Flow coefficient Kvs(m³/h) | 81 |
| Close-off pressure (KPa) | 1600 |
| Actuator torque (N•m) | 20(MVN..20) |
| Weight (Kg) | 3.19 |
