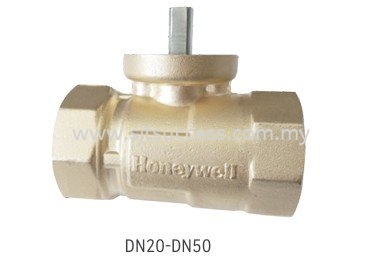

The VBA16P-series of two-way control ball valves can be used in the HVAC water systems of commercial and public buildings to achieve modulating or On/Off control.

Specifications

Size (mm)	40
Model	VBA16P040
Nominal pressure	PN16
Flow characteristics	Equal percentage
Rangeability	100:1
Leakage rate	≤0.01% Kvs of (ANSI/FCI 702 Class IV)
Threaded connection	BSPP
Medium	Hot and cold water or neutral liquid
Medium temperature	-5…120°C
Flow coefficient Kvs(m³/h)	26
Close-off pressure (KPa)	1600
Actuator torque (N•m)	10(MVN..10..)
Weight (Kg)	1.18
