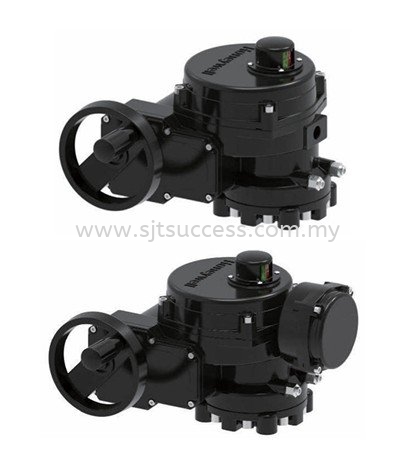

Electric actuators for butterfly valves are suitable for V8 and V9 series,which are used in water systems such as buildings/public buildings/urban pipe networks control, it’s possible to offer ONOFF control and modulating control as option,and 4~20mA ,0~10V/210V signals are available for the modulating control.

TECHNICAL DATA

Electrical data
Power Supply	AC220V±10% 50/60HZ
Limit switch	2×SPDT，250V AC 5A
Auxiliary switch	2×SPDT，250V AC 5A
Cable entries	2×M20*1.5
ON-OFF Type (NOM...)	Input signal:ON-OFF;Output signal:ON-OFF+Dry contact
Modulating Type (NOM...P)	Input signal:4~20mA(Default),0~10V/2~10V/0~20mA adjustable Output signal: Dry contact+ 4~20mA(Default),0~10V/2~10V/0~20mA adjustable

Functional data
Torque range	50-5000Nm
Angle of rotation	90°
Manual operation	Handwheel
Mounting base	ISO5211 standard
Position indicator	3D indicator

Safety
Degree of protection	IP67,(IP68 as option)
CE	EMC：2014/30/EU LVD： 2014/35/EU
Ambient temperature	-30℃～65°C
Thermal protection	Built-in thermal protection starting 125°C±5°C
Status of power Lost	Stop
Status of signal Lost	4~20mA/2~10V:Fully open/Fully closed adjustable(Default:Stop） 0~10V:Fully closed
Double anti-condensation protection	Heater AC220V,5W Anti-condensation Vent plug
counter unit	Built-in counter unit to record the running times (200Nm-5000Nm)

Close-off pressure of below items:1000kpa

Size	ON/OFF	Modulating	Actuator Torque Nm	Running time (50Hz)	Motor Comsumption (VA)	Heater (W)
DN700	NOM16H04000	NOM16H04000P	4000	140	286	5
