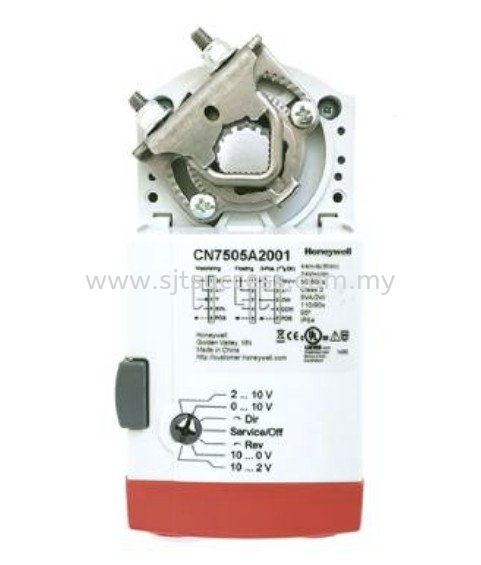

GENERAL This non-spring return direct-coupled damper actuator provides modulating and floating/2-position control for: • air dampers, • VAV units, • air handlers, • ventilation flaps, • louvers, and • reliable control for air damper applications with up to 10 sq.ft. / 44 lb-in. (5 Nm) and 20 sq.ft. / 88 lb-in. (10 Nm) (seal- less damper blades; air friction-dependent).

FEATURES • Declutch for manual adjustment • Adjustable mechanical end limits • Removable access cover for direct wiring • Mountable in any orientation • Function selection switch for selecting modulating or floating/2-position control

SPECIFICATIONS

Supply voltage	24 Vac/dc -15%/+20%, 50/60 Hz
Nominal voltage	24 Vac/dc, 50/60 Hz
All values stated hereinafter apply to operation under nominal voltage conditions.
Power consumption	5 VA / 2 W
Modulating	(0)2...10 Vdc
Floating/2-Position	24 Vac/dc
Ambient operating limits	-5...+140 °F (-20...+60 °C)
Ambient storage limits	-22...+176 °F (-30...+80 °C)
Relative humidity	5...95%, non-condensing
Protection standard	IP54
Protection class	II as per EN 60730-1
Overvoltage category	II
Full strokes	60000
Repositions	1.5 million
Round damper shaft	3/8 in…5/8 in.
Square damper shaft	1/4 in…1/2 in.; 45° steps
Shaft length	min. 1-5/8 in.
Rating	Class II
Triggering points	5° / 85°
Torque rating	44 lb-in. (5Nm) / 88 lb-in. (10Nm)
Rotation stroke	95° + 3°
Weight (without cables)	1.0 lbs.
Noise rating	35 dB(A) max. at 1 m
Certification	CE & UL
