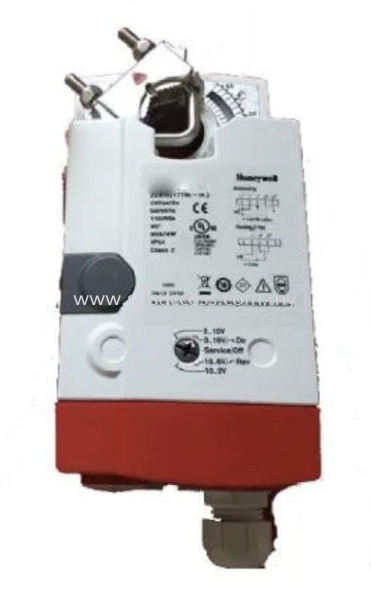

GENERAL These direct-coupled damper actuators provide two-position and floating control for: • air dampers, • VAV units, • air handlers, • ventilation flaps, • louvers, and • reliable control for air damper applications with up to 4.6 m2 / 50 sq.ft. (20 Nm / 177 lb-in) or 7.8 m2 / 85 sq. ft. (34 Nm / 300 lb-in) (seal-less dampers; air friction dependent).

FEATURES • Self-centering shaft adapter • Access cover to facilitate connectivity • Service/off for safe & easy servicing • Rotation direction selectable by switch • Declutch for manual adjustment • Mechanical end limits • Field-installable auxiliary switches • Mountable in any orientation (no IP54 if upside down) • Mechanical position indicator • CE and UL certified (230V models with CE only)

SPECIFICATIONS

Supply voltage	24 Vac/dc ±15%, 50/60 Hz
Nominal voltage	24 Vac/dc, 50/60 Hz
All values stated hereinafter apply to operation under nominal voltage conditions.
Power consumption	6 VA / 3 W
Ambient operating limits	-20...+60 °C (-5...+140 °F)
Ambient storage limits	-40...+80 °C (-40...+175 °F)
Relative humidity	5...95%, non-condensing
Protection standard	IP54 as per EN 60529
Protection class	II as per EN 60730-1
Overvoltage category	III
Full strokes	60000
Repositions	1.5 million
Round damper shaft	10...27 mm (3/8...1-1/16'')
Square damper shaft	10...18 mm (3/8...11/16'');45° steps
Shaft length	min. 22 mm (7/8'')
Rating	5 A (resistive) / 3 A (inductive)
Triggering points	5° / 85°
Torque rating	20 Nm (177 lb-in)
Runtime	95 sec (60 Hz) / 110 sec (50 Hz or DC supply)
Rotation stroke	95° ± 3°
Weight (without cables)	1.35 kg (3 lbs.)
Noise rating	40 dBA max. at 1 m
Certification	CE
