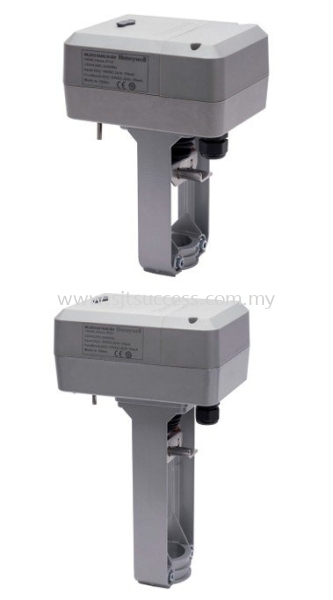

Honeywell ML8824-BV series PICV electric actuators are designed for use with pressure independent control valves (PICV) and provide a wide range of features. The ML8824-BV series actuator is available in standard (ML8824A-BV) and NFC (ML8824B-BV) versions. Models with the same close-off force have the same technical specifications. An Android APP is available for the NFC version, which can be used to configure and view dead band, sensitivity and maximum opening settings. You can also configure the maximum flow rate and view the current flow rate of the corresponding PICV (VPIC Series DN25–DN150, readings are based on laboratory test results).

Features •Self-adaption mode •Low power consumption •Quick and easy installation •Manual operation with override functions •DIP switch for configuring multiple parameters and functions (e.g. run time, run direction, input signal and feedback signal, etc.) •NFC function (NFC versions only) allows you to configure the PICV's maximum flow rate and view the current flow rate via mobile APP

SKU (Standard)	ML8824A1840-BV
SKU (NFC)	ML8824B1840-BV
Rated force	≥1800N
Rated travel	40 mm
Supply voltage	24 Vac ± 15%, 50/60Hz; 24 Vdc +15%, -10%;
Power consumption	14.5VA
Input signal	0(2)–10 Vdc, 0(4)–20 mA Voltage input impedance: >100KΩ  Current input impedance: <0.125KΩ
Feedback signal	0(2)–10 Vdc, 0(4)–20 mA
Operating speed	80s or 120s
IP rating	IP54 (EN60730)
Electrical protection class	III (EN60730-1)
Certification	CE (EN60730)
Operating conditions	-10°C to +55°C, 5–95% RH
Storage conditions	-40°C to +65°C, 5–95% RH
Operating medium temperature	Max 130°C
Material	Upper cover: Polycarbonate plastic Case: Cast aluminum Bracket: Cast aluminum
Weight	2.4 kg
