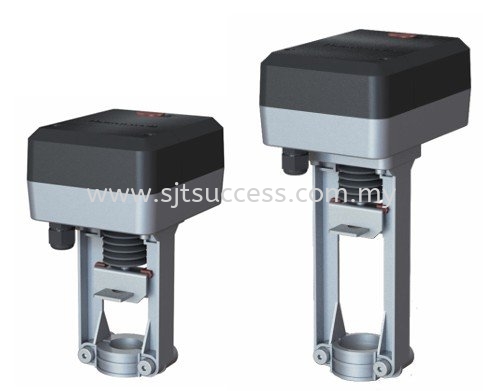

ML8824A Series electric linear valve actuators offer modulating controls for linear valves with position feedback signal, 0(2)-10Vdc or 0(4)-20mA. The products can be widely used with linear valves in heating, ventilation, and air conditioning application.

Features • Quick and easy installation • Lower power consumption • Maintenance-free • Self-adaption mode • Adjustable travel speed • Manual operation with override functions • 0(2)~10 Vdc, 0(4)~20 mA input signal • 0(2)~10 Vdc, 0(4)~20 mA position feedback signal • Selectable travel direction

Specifications

Model No.	ML8824A0620
Supply Voltage	24Vac ± 15% ,50/60Hz; 24Vdc +15% ,-10%;
Power Consumption	7VA
Signal input 1 0(2) Vdc or 0(4) mA	The valve connection is located at the bottom; 2-way valve ''closed''; 3-way valve A-AB port ''open''
Signal input 2 10Vdc or 20mA	The valve connection is located on the top; 2-way valve ''open''; 3-way valve A-AB port ''closed''
Feedback Signal	0(2)~10 Vdc, 0(4)~20 mA
Rated Travel	20mm
Run time	60s or 80s
Close-off force	≥600N
Weight	1.3kg
Electrical protection class	III (EN60730-1)
Protection class	IP54 (EN60730)
