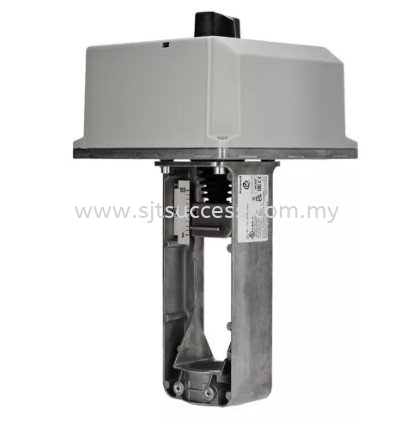

Honeywell ML8824-FS Electric Linear Valve Actuators Malaysia
ML8824 series linear valve actuators are used with control valves in sizes ranging from DN15 to DN150 connection size, with 20mm and 38mm stroke. It is used in a variety of applications where control accuracy is critical.
ML8824 series provide 0...10Vdc, 4...20mA, or floating 3-P control of 20mm and 38mm stroke control valves. The actuators are used with threaded valves in the V5011 and V5013 series, and flanged valves in the V5015, V5016, V5025, V5049, V5050, V5328, and V5329 series. Varieties include 24Vac/dc and 230Vac power, manual operation, and visual position indication. ML8824 with 20mm stroke can be configured for 40s or 80s runtime, while the 38mm version can be confiugred for 80s and 120s runtime.
ML8824 series provide 0...10Vdc, 4...20mA, or floating 3-P control of 20mm and 38mm stroke control valves. The actuators are used with threaded valves in the V5011 and V5013 series, and flanged valves in the V5015, V5016, V5025, V5049, V5050, V5328, and V5329 series. Varieties include 24Vac/dc and 230Vac power, manual operation, and visual position indication. ML8824 with 20mm stroke can be configured for 40s or 80s runtime, while the 38mm version can be confiugred for 80s and 120s runtime.
