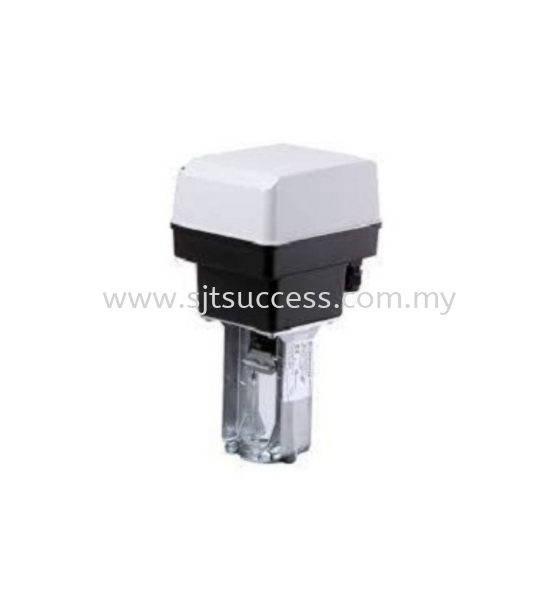

Honeywell ML7425A8018-E Electric Linear Valve Actuators Malaysia
HONEYWELL MALAYSIA ML7425A8018-E MALAYSIA ML7425A8018-E PRICE ML7425A MALAYSIA HONEYWELL ACTUATOR MALAYSIA
The ML7420A / ML7425A,B actuators are designed for modulating control with controllers providing an analog output of 0...10 Vdc or 2...10 Vdc. They operate Honeywell’s standard valves in heating, district heating, ventilation, and air conditioning (HVAC) applications. Spring-return models provide a safety position at power failure
FEATURES • Easy and quick installation • No separate linkage required • No adjustments required • Low power consumption • Force-limiting end stops • Spring-return models (ML7425A,B) • Manual operation knob • Position feedback signal • 0...10 Vdc or 2...10 Vdc signal input selectable • Direct / reverse action selectable • Stroke position on signal failure selectable • Corrosion-resistant design • Maintenance-free
FEATURES • Easy and quick installation • No separate linkage required • No adjustments required • Low power consumption • Force-limiting end stops • Spring-return models (ML7425A,B) • Manual operation knob • Position feedback signal • 0...10 Vdc or 2...10 Vdc signal input selectable • Direct / reverse action selectable • Stroke position on signal failure selectable • Corrosion-resistant design • Maintenance-free
SPECIFICATIONS
| Temperature Limits | |
| Ambient operating limits | -10~+50 ℃ at 5~95% r.h. |
| Ambient storage limits | -40...+70 °C at 5...95% r.h. |
| Medium temperature | Max. 150 °C (220 °C with High-Temperature kit) |
| Signals | |
| Signal input voltage |
y = 0...10 Vdc or 2...10 Vdc R i = 100kΩ |
| Signal source | 1 kΩ max. |
| Position feedback signal | x=2~10Vdc |
| Load | 1 mA max. |
| Safety | |
| Protection class | II as per EN60730-1 |
| Protection standard | IP54 as per EN60529 |
| Flame retardant housing | V0 as per UL94 (with metal cable gland) |
| Material | |
| Cover | ABS-FR |
| Yoke | aluminum diecast |
| Base | glass fiber reinforced plastic |
