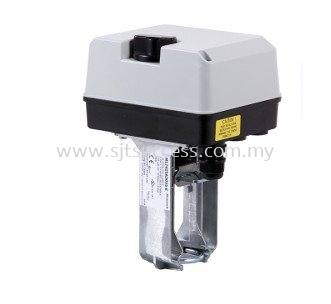

Honeywell ML6420A3007-E Electric Linear Valve Actuators Malaysia
HONEYWELL MALAYSIA ML6420A3007-E MALAYSIA ML6420A3007-E PRICE ML6420A MALAYSIA HONEYWELL ACTUATOR MALAYSIA
The ML6420A / ML6425A,B actuators enable floating control, and are suitable for use in conjunction with ON/OFF or floating single-pole, double-throw (SPDT) control outputs. They can operate Honeywell’s standard valves in heating, ventilation, and air conditioning (HVAC) applications.
FEATURES ▪ Quick and easy installation ▪ No separate linkage required ▪ No adjustments ▪ Low power consumption ▪ Force-limiting end switches ▪ Spring-return models ▪ Manual operator ▪ Models for low and line voltage ▪ Synchronous motor ▪ Corrosion-resistant design ▪ Maintenance-free ▪ Actuator-valve combinations approved according to DIN 14597 available
SPECIFICATIONS
FEATURES ▪ Quick and easy installation ▪ No separate linkage required ▪ No adjustments ▪ Low power consumption ▪ Force-limiting end switches ▪ Spring-return models ▪ Manual operator ▪ Models for low and line voltage ▪ Synchronous motor ▪ Corrosion-resistant design ▪ Maintenance-free ▪ Actuator-valve combinations approved according to DIN 14597 available
SPECIFICATIONS
| Temperature Limits | |
| Ambient operating limits | -10...+50 °C at 5...95% RH |
| Ambient storage limits | -40...+70 °C at 5...95% RH |
| Medium valve temperature | see section ''Models'' on pg. 2; 220 °C with High-Temperature Kit |
| Protection | |
| Protection standard | IP54 per DIN 40050 |
| Insulation | Class II per DIN EN60730 |
| Flame retardant as per | UL 94-V0 (with metal cable gland – not supplied) |
| Operating mode | Type 2B as per EN 60730-1 |
| Wiring | |
| Wiring terminals | 1.5 mm2 |
| Cable entry | M20x1.5 and two additional knock-outs M16x1.5 and M20x1.5 |
| Weight | |
| Non-spring return type | 1.3 kg |
| Spring return type | 2.4 kg |
