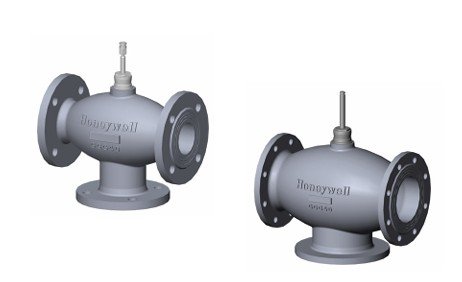

Honeywell V5GV3W065F-E 3-way Globe Valve Malaysia
HONEYWELL MALAYSIA HONEYWELL VALVE MALAYSIA V5GV3W MALAYSIA V5GV3W065F-E MALAYSIA V5GV3W065F-E PRICE
V5GV3W globe valve directly coupled with linear actuator ML7420, ML7421 and ML8824A are used to provide precise control for HVAC hydraulic systems applications.
Features • Ductile iron body with standard flanged connection • Metal sealing of valve seat for long service life • Accurate positioning fo valve stem to ensure temperature control • Easy mounting of being directly coupled with ML7420, ML7421 or ML8824A actuator without the need for steam connection
Basic Parameters
Features • Ductile iron body with standard flanged connection • Metal sealing of valve seat for long service life • Accurate positioning fo valve stem to ensure temperature control • Easy mounting of being directly coupled with ML7420, ML7421 or ML8824A actuator without the need for steam connection
Basic Parameters
| Action | Stem up to A-AB to close |
| Nominal pressure rating | PN16 |
| Type of valve | Three-way with integrated flow |
| Flow characteristic |
A-AB: Equal percentage B-AB: Equal linear |
| Rangeability | 50:1 |
| Leakage rate |
A-AB: ≤0.02% of Kvs B-AB: ≤1% of Kvs |
| Rated stroke |
20mm（DN50...80） 40mm（DN100...150） |
| Connection | Flanged per ISO 7005-2 |
| Medium | Chilled/hot water |
| Medium temperature | -15…+130°C |
