Siemens 1FT7034-1AK71-1CH1 Simotics S Synchronous Motor Malaysia
SIEMENS MALAYSIA SIEMENS MOTOR MALAYSIA SIMOTICS MOTOR MALAYSIA 1FT7034-1AK71-1CH1 MALAYSIA 1FT7034-1AK71-1CH1 PRICE
| Product | ||
| Article Number | 1FT7034-1AK71-1CH1 | |

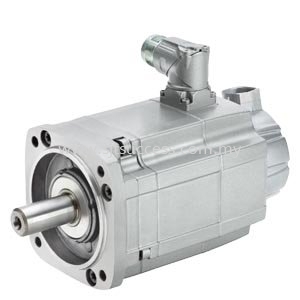

| Product Description | SIMOTICS S Synchronous motor 1FT7, M0=2Nm (100K) NN=6000rpm, PN=0.88kW naturally cooled; Power connector rotatable; Vibration severity A Degree of protection IP65 Frame size IMB 5 (IM V1, IM V3) Conventional flange (1FT6/1FK7 compatible) ABSOLUTE ENCODER 24 BITS + 12 BIT MULTITURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM24DQI) PLAIN SHAFT, WITH HOLDING BRAKE; ACCURACY TOLERANCE N | |
| Product family | 1FT7 servomotors for SINAMICS S120 | |
| Product Lifecycle (PLM) | PM300:Active Product | |
| Price data | ||
| Price Group | 762 | |
| List Price | Show prices | |
| Customer Price | Show prices | |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) | |
| Metal Factor | ------71 | |
| Delivery information | ||
| Export Control Regulations | ECCN : N_CNDU / AL : N | |
| Standard lead time ex-works | 15 Day(s) | |
| Net Weight (kg) | 4,200 Kg | |
| Package size unit of measure | Not available | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | Not available | |
| UPC | 887621027810 | |
| Commodity Code | 85015220 | |
| LKZ_FDB/ CatalogID | SD.NC61KT-1FT7 | |
| Product Group | 9693 | |
| Group Code | R220 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2018 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|
| SCIP number | 6b8b0f1f-6dbc-4987-add7-2615fd123539 | |
