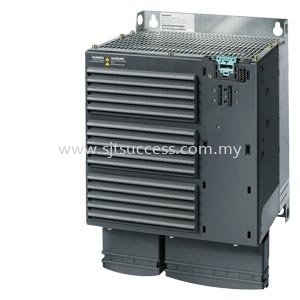

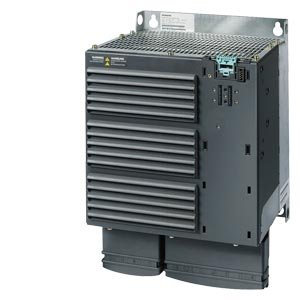

Siemens 6SL3224-0BE31-8UA0 Sinamics Power Module Malaysia
SINAMICS G120 MALAYSIA SIEMENS PM240 MALAYSIA 6SL3224 MALAYSIA 6SL3224-0BE31-8UA0 MALAYSIA 6SL3224-0BE31-8UA0 PRICE
| Product | ||
| Article Number (Market Facing Number) | 6SL3224-0BE31-8UA0 | |
| Product Description | ***spare part*** SINAMICS G120 PM240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 18.5 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 °C power low overload: 22 kW at 150% 3 s,110% 57 s,100% 240 s ambient temperature -10 to +40 °C 419 x 275 x 204 (HxWxD), FSD degree of protection IP20 without Control Unit and BOP | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM410:Product cancellation | |
| PLM Effective Date | Product is cancelled since: 01.10.2019 | |
| Notes |
This product is a Spare Part, please visit the Spares & Service section for more information
If you need assistance please contact our local Siemens office
|
|
| Price data | ||
| Region Specific PriceGroup / Headquarter Price Group | S70 / 3A2 | |
| List Price | Show prices | |
| Customer Price | Show prices | |
| Surcharge for Raw Materials | None | |
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | ECCN : 9N9999 / AL : N | |
| Standard lead time ex-works | 1 Day/Days | |
| Net Weight (kg) | 13,000 Kg | |
| Packaging Dimension | 400,00 x 510,00 x 310,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4019169455091 | |
| UPC | 662643434477 | |
| Commodity Code | 85044086 | |
| LKZ_FDB/ CatalogID | D11.1SD | |
| Product Group | 9486 | |
| Group Code | R2S3 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2012 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|
| SCIP number | 6ceb1a50-2f48-4d2e-a9a1-e863077cf831 | |
