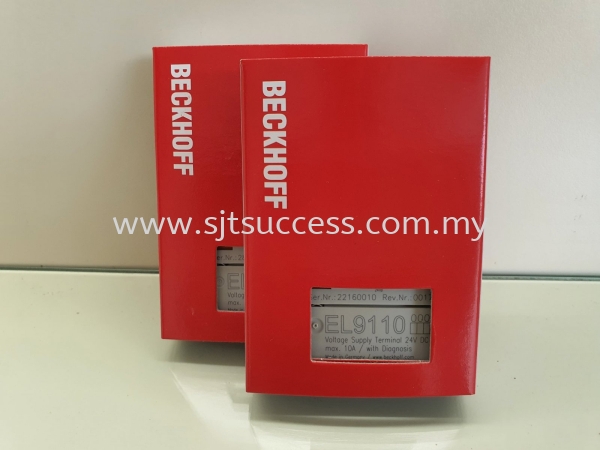

Beckhoff EL9110 Potential Supply Terminal Malaysia
| Technical data | EL9110 |
|---|---|
| Technology | potential supply terminal with diagnostics |
| Current load | ≤ 10 A |
| Power LED | green |
| Current consumption E-bus | typ. 90 mA |
| Nominal voltage | 24 V DC |
| Electrical isolation | 500 V (E-bus/field potential) |
| Diagnostics in the process image | yes |
| Reported to E-bus | yes |
| PE contact | yes |
| Bit width in the process image | 2 |
| Housing width | 12 mm |
| Weight | approx. 50 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking |
ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
