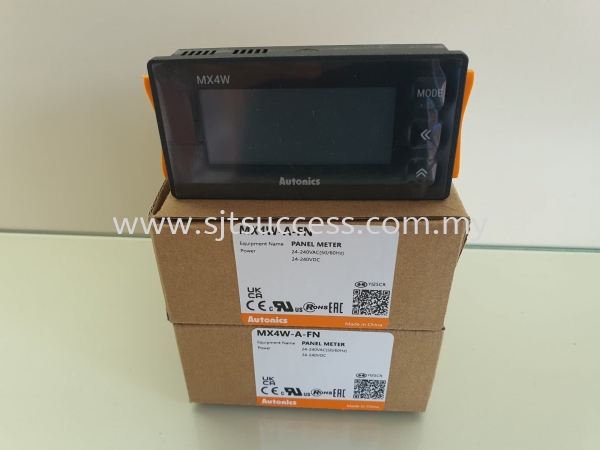

Autonics MX4W-A-FN Panel Meter Malaysia
MX4W-A-FN
- Display method : 12 segment (measurement value display part: white, character height: 19mm), other display parts(red, green, yellow, indicator model: white) LCD method
- Character height : 19mm
- Max. display Range : -9999 to 9999(4digit)
-
Measurement : DC current
AC current, Frequency -
Input specification : DC ±20mA, 4-20mA, ±5mA, ±2mA, ±500mA, ±200mA, ±50mA, ±5A, ±2A,
AC 0-20mA, 0-5mA, 0-2mA, 0-500mA, 0-200mA, 0-50mA, 0-5A, 0-2A -
Power supply : 24-240VAC~ 50/60Hz, 24-240VDC
- Environment_Ambient temperature : -10 to 50℃, storage: -20 to 60℃
- Weight : Approx. 100g(approx. 77g)
