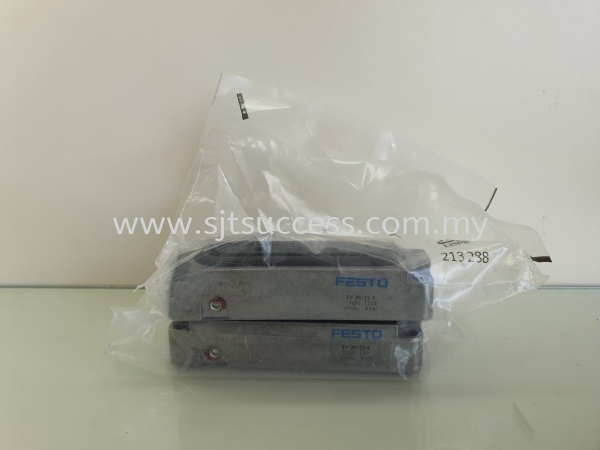

Festo EV-20/75-5 Clamping Module Malaysia
TECHNICAL DATA
- Clamping surface20x75
- Mounting positionoptional
- Mode of operationSingle-acting
- Symbol00991208
- Operating pressure0.2 MPa ... 0.6 MPa
- Operating pressure2 bar ... 6 bar
- Operating pressure29 psi ... 87 psi
- Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteriesMetals with more than 5% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils
- Ambient temperature-20 °C ... 40 °C
- Product weight130 g
- Type of mountingWith through-hole
- Pneumatic connectionM5
- Material housingDie-cast aluminium
- Material membraneTPE-U(PU)
