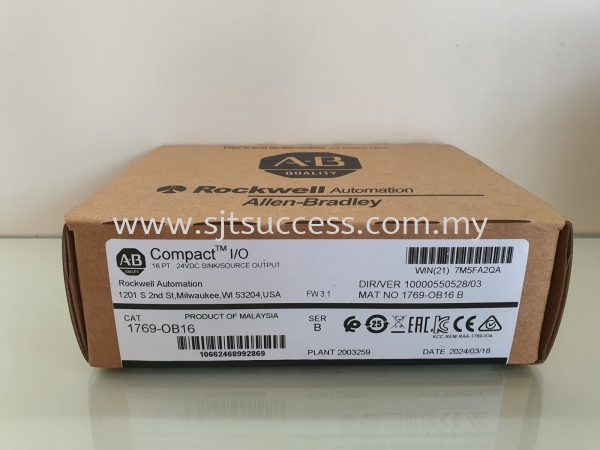

Allen Bradley 1769-OB16 Malaysia
Technical specifications for 1769-OB16
| Manufacturer | Rockwell Automation / Allen-Bradley |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-OB16 |
| Product Family: | Compact I/O |
| Product Line | CompactLogix |
| Product Type: | Discrete Output Module |
| Module Type | DC Output Module |
| Input Type | Digital Output |
| No. of Outputs: | 16 |
| Power Supply Distance Rating | 8 |
| No. of Groups: | 1 |
| Communication Cable | 16-Point |
| Voltage Category | 24V DC source |
| Shipping Weight | 2 lbs |
| Shipping Dimensions | 8 x 8 x 5 in |
| Operating Voltage range: | 20.4…26.4V DC |
| Current per point: | 0.5 A @ 60 °C (140 °F) 1.0 A @ 30 °C (86 °F) |
| Power | 24 Volts DC |
| Output delay, On: | 0.1 ms |
| Series | A and B |
| Output delay, Off: | 1.0 ms |
| Bus Current draw, max: | 200 mA |
| Heat Dissipation: | 2.11 W |
| Wire Size (Solid) | 22-14 AWG |
| Mounting: | DIN rail or panel mount |
