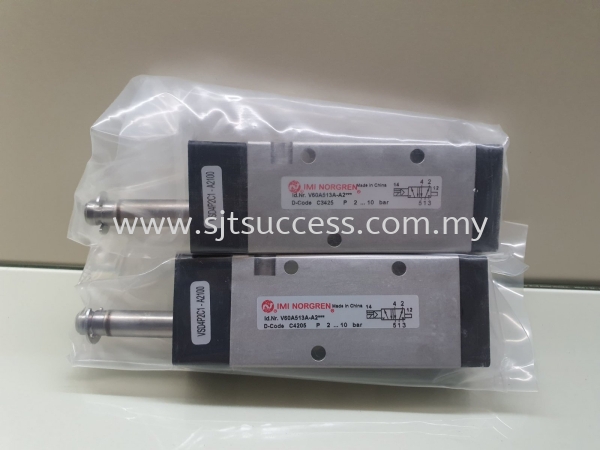

Norgren V60A513A-A2 Solenoid Valve Malaysia
Technical Details
| Medium | Compressed air |
|---|---|
| Operating Temperature | -10 ... 50 °C, 14 ... 122 °F |
| Operating Pressure | 2 ... 10 bar, 29 ... 145 psi |
| Port Size | G1/8 |
| Actuation | Solenoid pilot / Air spring return |
| Coil Code | QM/48/1*J/21 or V10626-A1*L |
| Valve operation | 5/2 |
| Flow | 750 l/m, 26 scfm |
| Materials - Body | Aluminium |
| Materials - Seals | Nitrile rubber, FPM |
| Certification - IP Rating | IP65 (with sealed plug) |
| Dimensions - Height | 32 mm |
| Dimensions - Length | 140 mm |
| Dimensions - Width | 50 mm |
| Weight | 0.155 kg |
| Country of Origin | Czechia |
| Range | V60…63 |
| Series | V60 |
| Brand | IMI Norgren |
