Autonics PRD30-25DN Proximity Sensor Malaysia

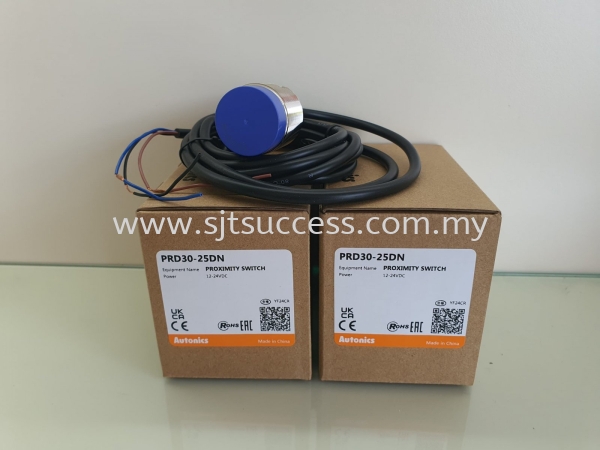

PRD30-25DN
- Sensing side diameter : M30
- Sensing distance : 25mm
- Installation : Non-shield(non-flush)
- Standard sensing target : 75×75×1mm(iron)
- Response frequency : 100Hz
-
Wire type and power DC 3-wire type 12-24VDC
Sensing side diameter M30 Sensing distance 25mm Installation Non-shield(non-flush) Standard sensing target 75×75×1mm(iron) Response frequency 100Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Open Material Brass(nickel plated) Cable Standard/material Standard cable Protection structure IP67 Body length Standard type Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Residual voltage Max. 1.5V Weight ≈ 143g (≈ 180g)
