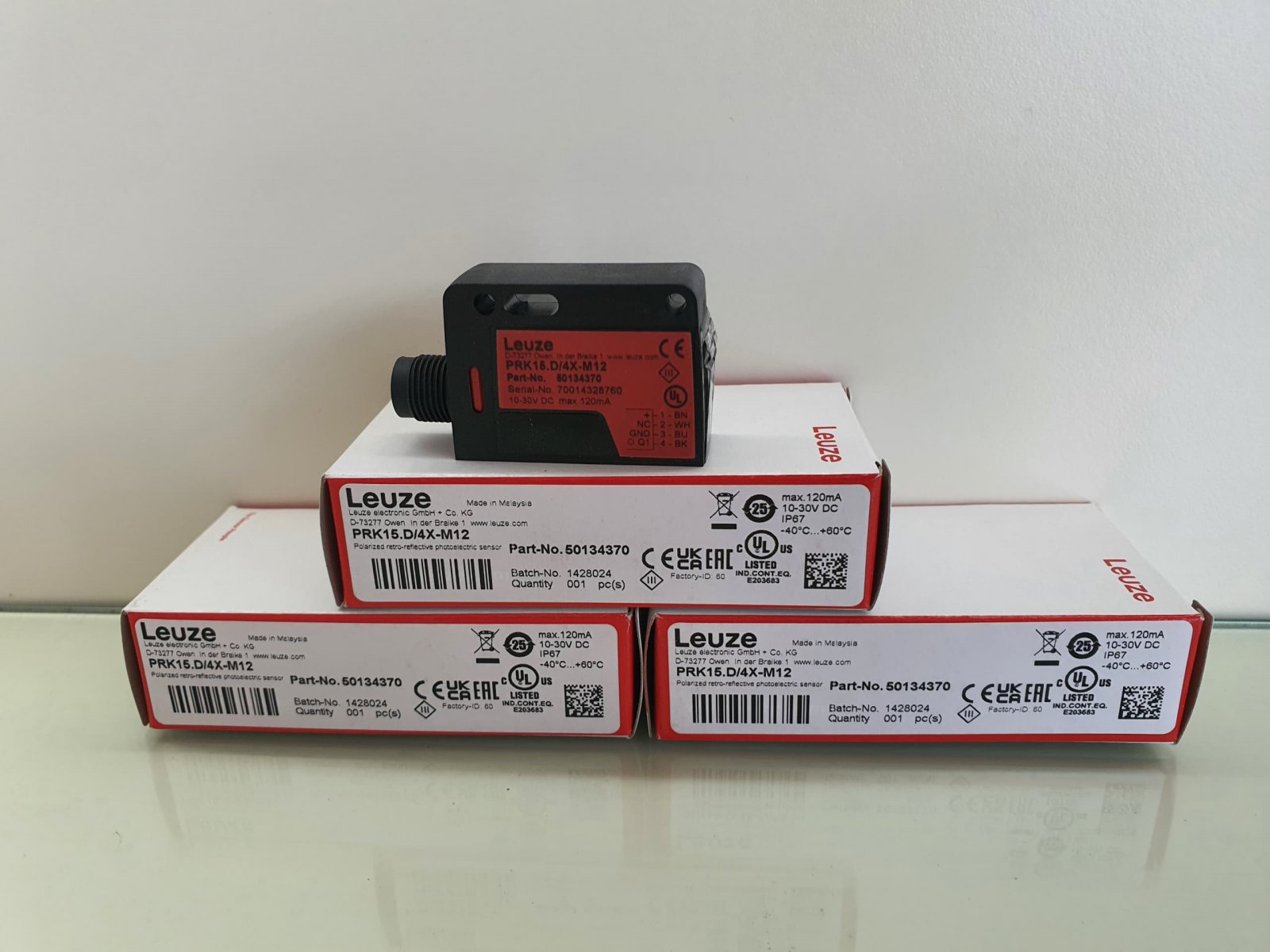

Leuze PRK15.D/4X-M12 photoelectric sensor
|
Series |
15 |
|
Operating principle |
Reflection principle |
|
Application |
Detection of stretch-wrapped objects |
|
Operating range |
0.7 ... 6 m, With reflector TK(S) 100x100 |
|
Operating range |
Guaranteed operating range |
|
Operating range limit |
0.05 ... 8 m, With reflector TK(S) 100x100 |
|
Operating range limit |
Typical operating range |
|
Light source |
LED, Red |
|
Wavelength |
640 nm |
|
LED group |
Exempt group (in acc. with EN 62471) |
|
Protective circuit |
Polarity reversal protection
Short circuit protected |
|
Supply voltage UB |
10 ... 30 V, DC, Incl. residual ripple |
|
Residual ripple |
0 ... 15 %, From UB |
|
Open-circuit current |
0 ... 20 mA |
|
Number of digital switching outputs |
1 Piece(s) |
|
Switching element |
Transistor, PNP |
|
Switching principle |
Light switching |
|
Switching frequency |
500 Hz |
|
Response time |
1 ms |
|
Readiness delay |
300 ms |
|
Function |
Signal OUT
Voltage supply |
|
Type of connection |
Connector |
|
Thread size |
M12 |
|
Type |
Male |
|
Material |
Plastic |
|
No. of pins |
4 -pin |
|
Encoding |
A-coded |
|
Dimension (W x H x L) |
15 mm x 42.7 mm x 30 mm |
|
Housing material |
Plastic |
|
Plastic housing |
ABS |
|
Lens cover material |
Plastic |
|
Net weight |
15 g |
|
Housing color |
Black |
|
Type of fastening |
Through-hole mounting
Via optional mounting device |
|
Ambient temperature, operation |
-40 ... 60 °C |
|
Ambient temperature, storage |
-40 ... 70 °C |
|
Degree of protection |
IP 67 |
|
Protection class |
III |
|
Approvals |
c UL US |
|
Standards applied |
IEC 60947-5-2 |
