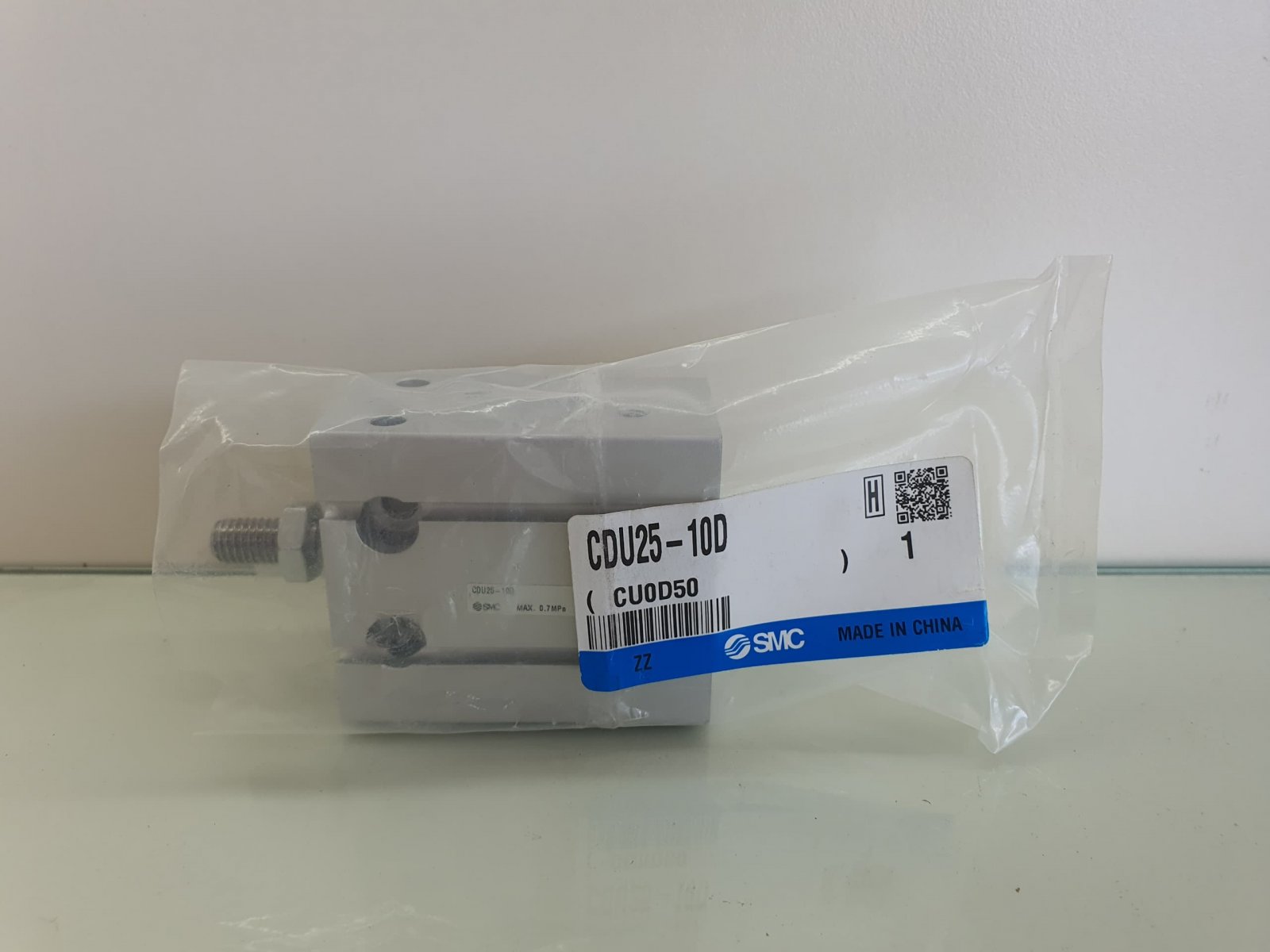

SMC CDU25-10D COMPACT CYLINDER

Ordering Guide
The series CU free mount cylinder saves space and allows direct and precise mounting. It is available in 6mm to 32mm bore sizes with stroke lengths up to 50mm. Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, double rod, single and double acting, and rubber bumpers standard.

Bore sizes from 6mm to 32mm available
Stroke lengths up to 50mm
Any surfaces can be used for mounting
Space saving
Auto-switch capable

Documents:tab 3

Series Catalog

Click Here for Return Policy

SMC Part Description:tab 4

CYL, FREE MT, DBL/ACT

SMC Products Line:tab 5

ACTUATOR

SMC Family:tab 1

CU COMPACT CYLINDER

SMC Family Code:tab 11

SMC Class Description:tab 8

25MM CU DBL-ACT AUTO-SW

Weight:tab 9
