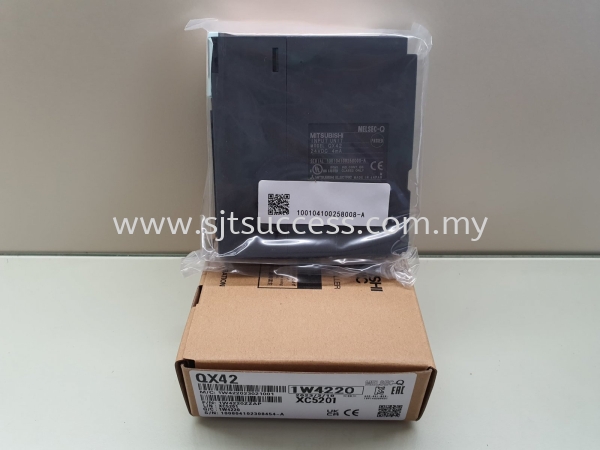

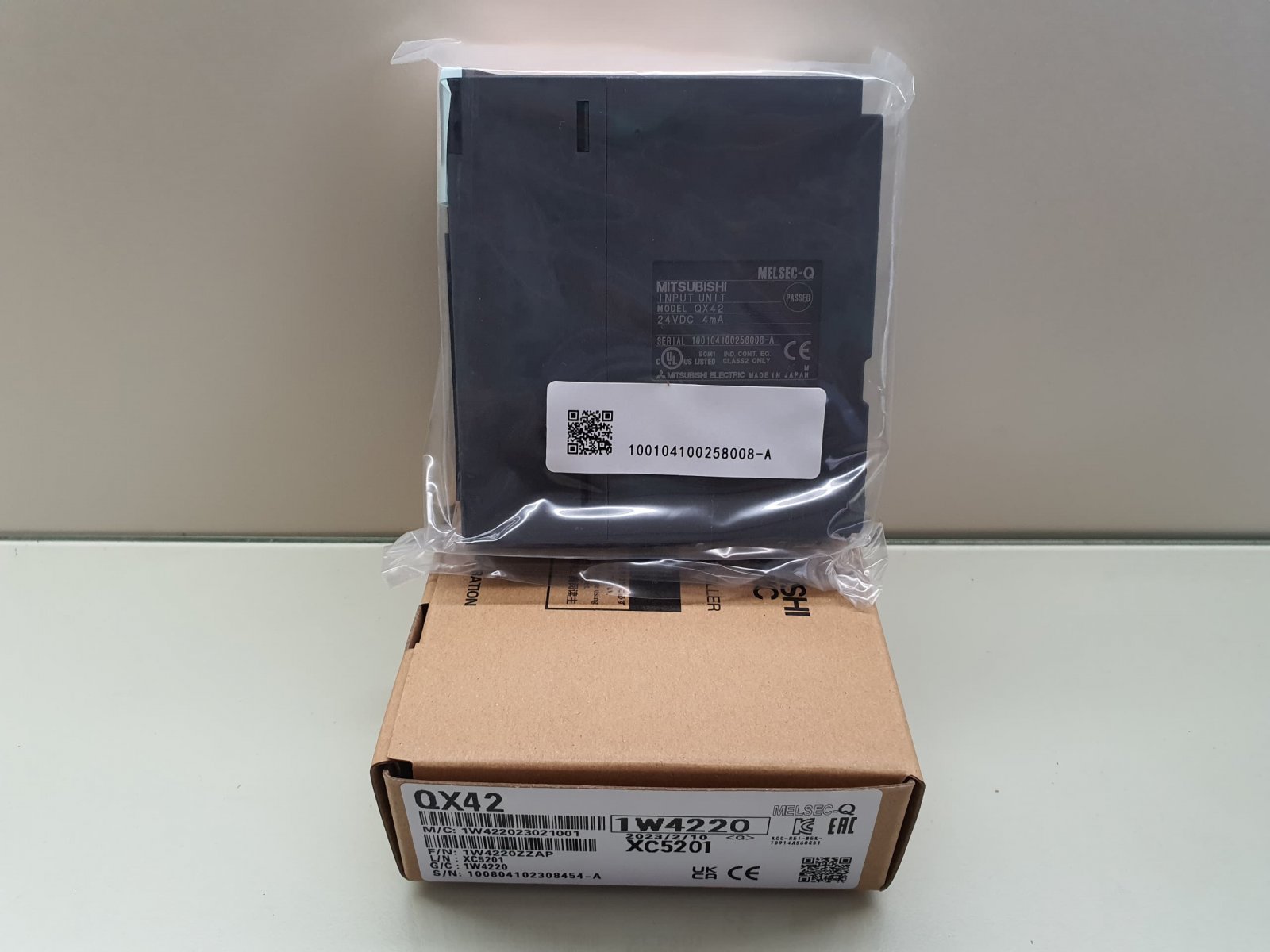

Mitsubishi QX42 Digital Input Module
FA-MOD PLC: Digital Input Module
| Series | MELSEC-Q SERIES |
|---|---|
| Type | DC INPUT (PLUS COMMON) |
| Occupied I/O Points on PLC | 64 |
| Integrated Digital Inputs | 64 |
| Rated Input Voltage (VDC) | 24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,075 |
Product Dimensions & Weight
| Depth (mm) | 90 |
|---|---|
| Weight (kg) | 0,143 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
Conformity
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
