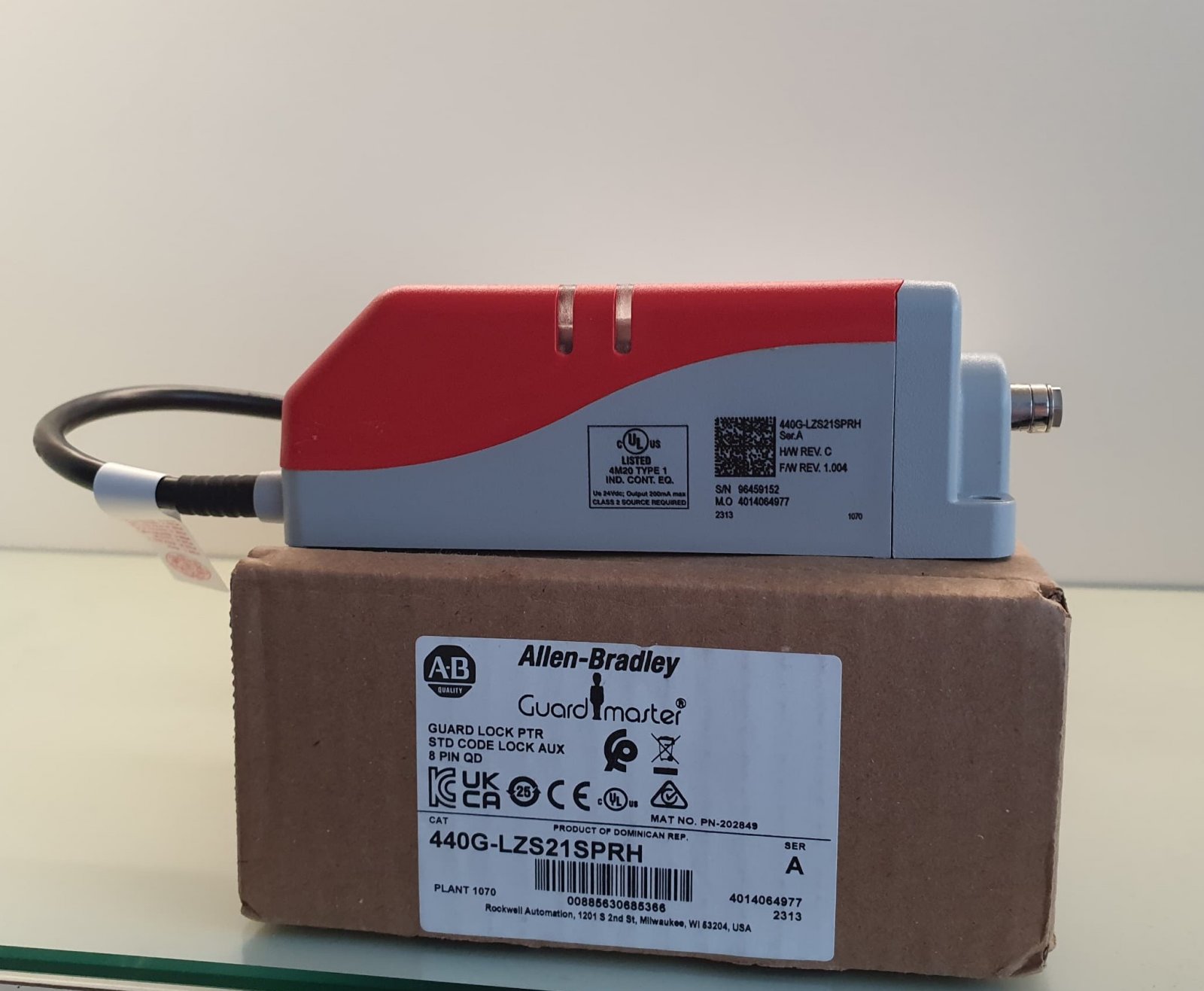

Allen Bradley 440G-LZS21SPRH Guardlock Switch Malaysia
440G-LZS21SPRH
Guardlock Switch 2NC 1NO 8 Pin DC QD
Guard Locking Switch - 440G-LZ: Solenoid Voltage: 24V DC, Contacts(Safety and Aux): 2 x PNP (0.2A max.), 1 x PNP (0.2A max.) - Lock status, Actuator: RFID Standard, Conduit Entry: 6-in. Pigtail with M12 8-Pin QD
| Ambient temperature during operating | 0...55 °C |
| Clamping force | 1300 N |
| Coating housing | Uncoated |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Height of sensor | 160 mm |
| IP-rating | IP66/IP67 |
| Length of sensor | 45 mm |
| Material housing | Plastic |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Rated control supply voltage Us magnet drive at DC | 24...24 V |
| Rated operation current Ie at DC-13, 24 V | 0.2 A |
| Suitable for safety functions | yes |
| Type of electric plug connection | Plug-in connection M12 |
| Type of guard locking | Bistable |
| Type of switching contact | Other |
| Width sensor | 50 mm |
| With auxiliary release | no |
| With escape unlocking | yes |
| With status indication | yes |
