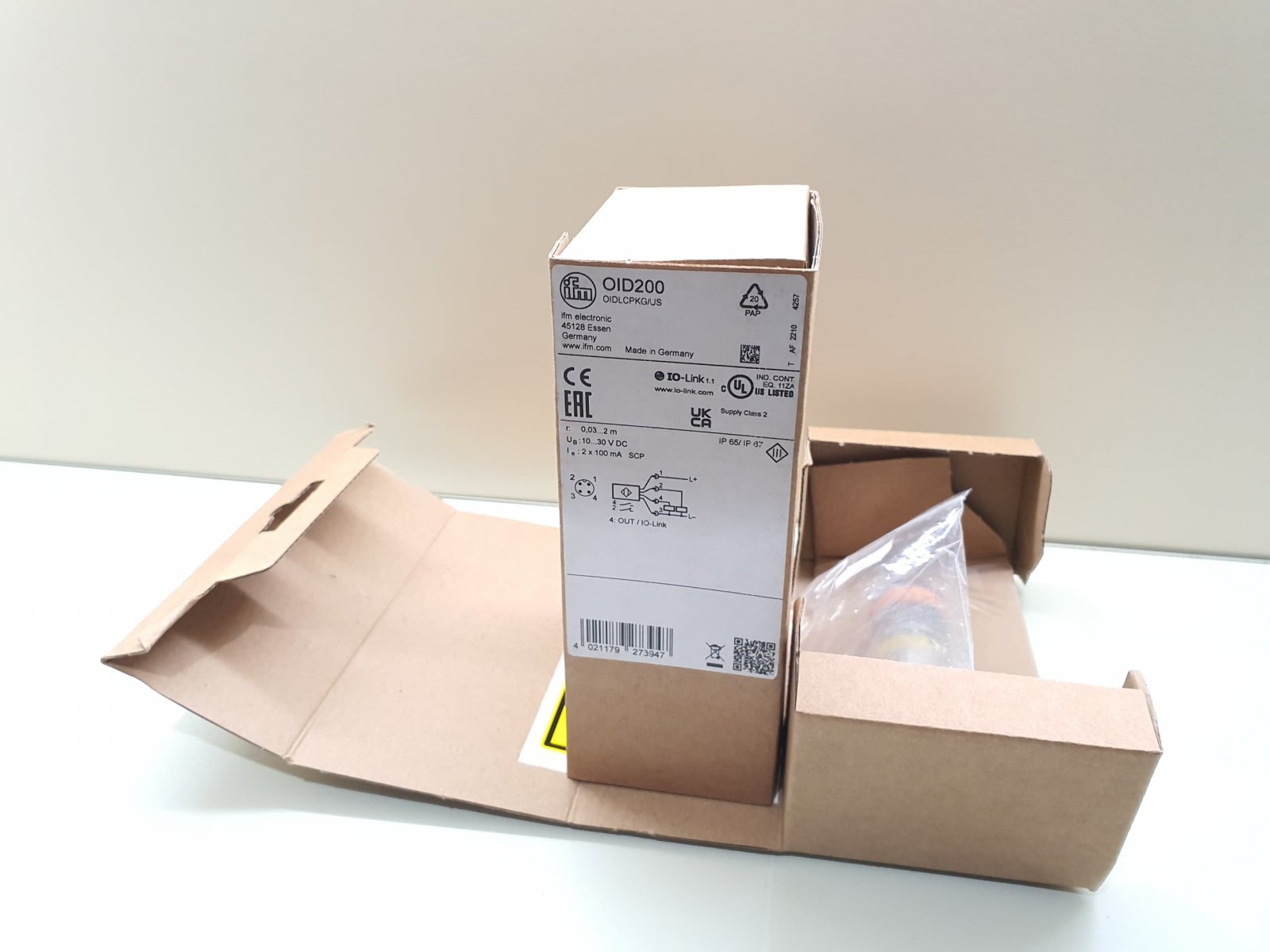

IFM OID200 OIDLCPKG/US Photoelectric distance sensor Malaysia
-
Very long range due to time-of-flight measurement
-
Reliable background suppression and colour-independent detection
-
Easy parameter setting via turnable, lockable setting ring
-
Reliable detection of glossy surfaces
-
User-friendly communication via IO-Link
Product characteristics
|
Type of light |
red light |
|
Laser protection class |
2 |
Application
|
Special feature |
Background suppression |
Electrical data
|
Operating voltage [V] |
10...30 DC; (''supply class 2'' to cULus) |
|
Current consumption [mA] |
75; (24 V) |
|
Protection class |
III |
|
Reverse polarity protection |
yes |
|
Type of light |
red light |
|
Wave length [nm] |
650 |
|
Typ. lifetime [h] |
50000 |
Inputs / outputs
|
Number of inputs and outputs |
Number of digital outputs: 2 |
Outputs
|
Total number of outputs |
2 |
|
Electrical design |
PNP |
|
Number of digital outputs |
2 |
|
Output function |
normally open / normally closed; (complementary) |
|
Max. current load per output [mA] |
100 |
|
Switching frequency DC [Hz] |
11 |
|
Short-circuit protection |
yes |
|
Type of short-circuit protection |
pulsed |
|
Overload protection |
yes |
Detection zone
|
Max. light spot diameter [mm] |
5 |
|
Light spot dimensions refer to |
2 m |
|
Detection range hysteresis [%] |
< 2 |
|
Note on monitoring range hysteresis |
|
|
Background suppression available |
yes |
|
Background suppression [m] |
< 20 |
Measuring/setting range
|
Measuring range [m] |
0.03...2 |
|
Sampling rate [Hz] |
33 |
Interfaces
|
Communication interface |
IO-Link |
|
Transmission type |
COM2 (38,4 kBaud) |
|
IO-Link revision |
1.1 |
|
SDCI standard |
IEC 61131-9 |
|
Profiles |
Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis |
|
SIO mode |
yes |
|
Process data analogue |
1 |
|
Process data binary |
1 |
|
Min. process cycle time [ms] |
6.6 |
|
Supported DeviceIDs |
|
Type of operation |
DeviceID |
|
default |
373 |
|
Operating conditions
|
Ambient temperature [°C] |
-25...60 |
|
Note on ambient temperature |
|
at ta < -10 °C warm-up is necessary, laser is off |
|
|
Protection |
IP 65; IP 67 |
|
Max. immunity to extraneous light [klx] |
10; (on the object) |
Tests / approvals
|
EMC |
|
|
Laser protection class |
2 |
|
Notes on laser protection |
|
Caution: |
laser light |
|
Power: |
<= 4,0 mW |
|
Wave length: |
650 nm |
|
pulse: |
1,3 ns |
|
Do not stare into beam. |
|
|
Avoid exposure to the laser light. |
|
|
laser class: |
2 |
|
|
EN / IEC60825-1:2007 |
|
|
EN / IEC60825-1:2014 |
|
|
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007. |
|
|
MTTF [years] |
239 |
Mechanical data
|
Weight [g] |
207 |
|
Dimensions [mm] |
M30 x 1.5 / L = 100 |
|
Thread designation |
M30 x 1.5 |
|
Materials |
housing: stainless steel; front pane: PMMA; LED window: PC; PBT; PC; FKM |
Displays / operating elements
|
Display |
|
switching status |
LED, yellow switching output PIN 4 |
|
operation |
LED, green |
|
|
With scale |
yes |
|
Display unit |
cm; inch |
|
Operating elements |
|
Accessories
|
Items supplied |
|
lock nuts: 2 x M30, stainless steel |
|
Electrical connection
|
Connection |
Connector: 1 x M12; coding: A |
