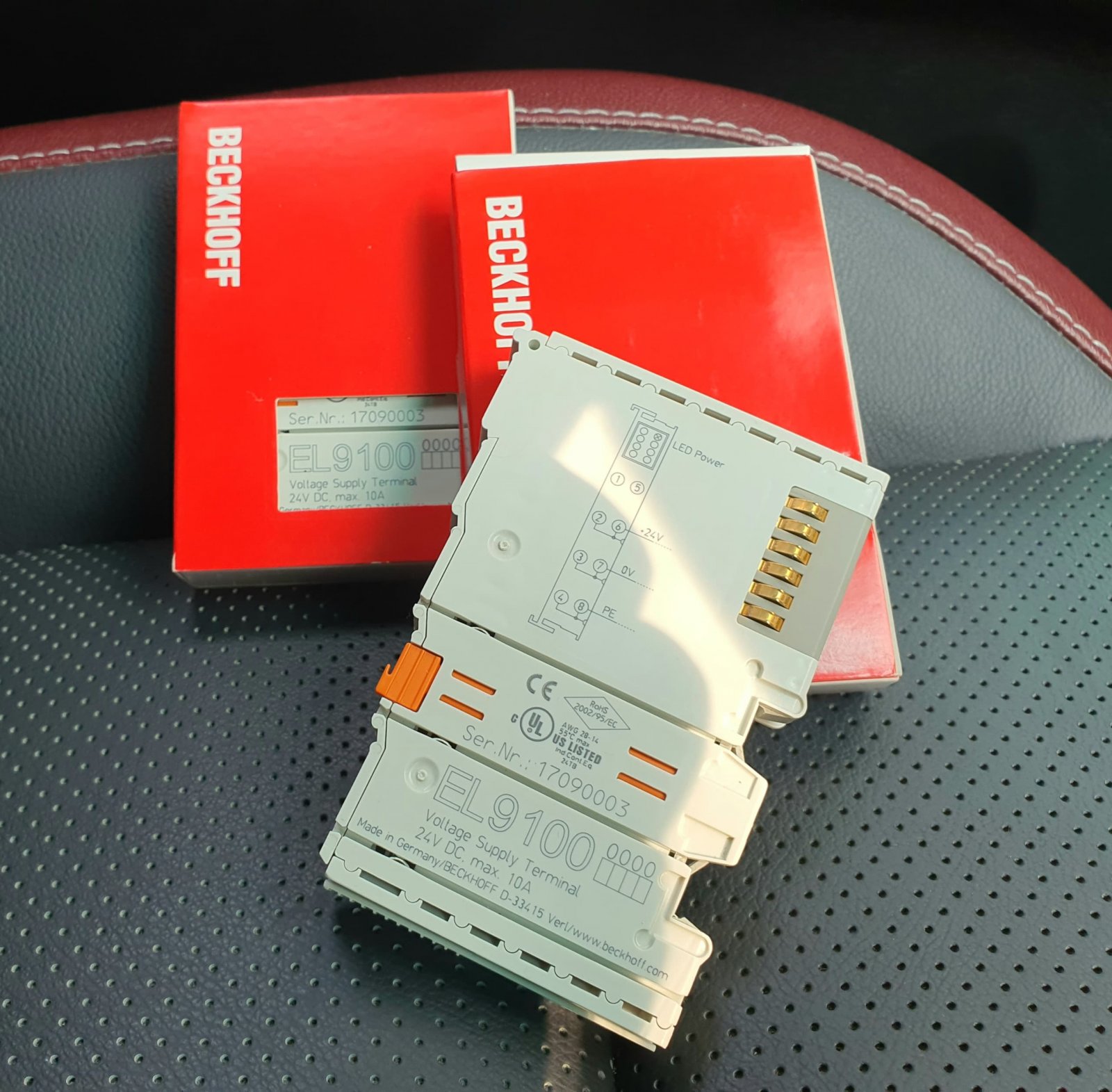

Beckhoff EL9100 Potential supply terminal Malaysia
| Technical data | EL9100 |
|---|---|
| Technology | potential supply terminal |
| Current load | ≤ 10 A |
| Power LED | green |
| Renewed infeed | yes |
| Nominal voltage | 24 V DC |
| Electrical isolation | 500 V (E-bus/field potential) |
| PE contact | yes |
| Connection facility to additional power contact | 1 |
| Bit width in the process image | 0 |
| Housing width | 12 mm |
|
Side by side mounting on EtherCAT Terminals with power contact |
yes |
|
Side by side mounting on EtherCAT Terminals without power contact |
yes |
| Weight | approx. 50 g |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Ex marking |
ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
