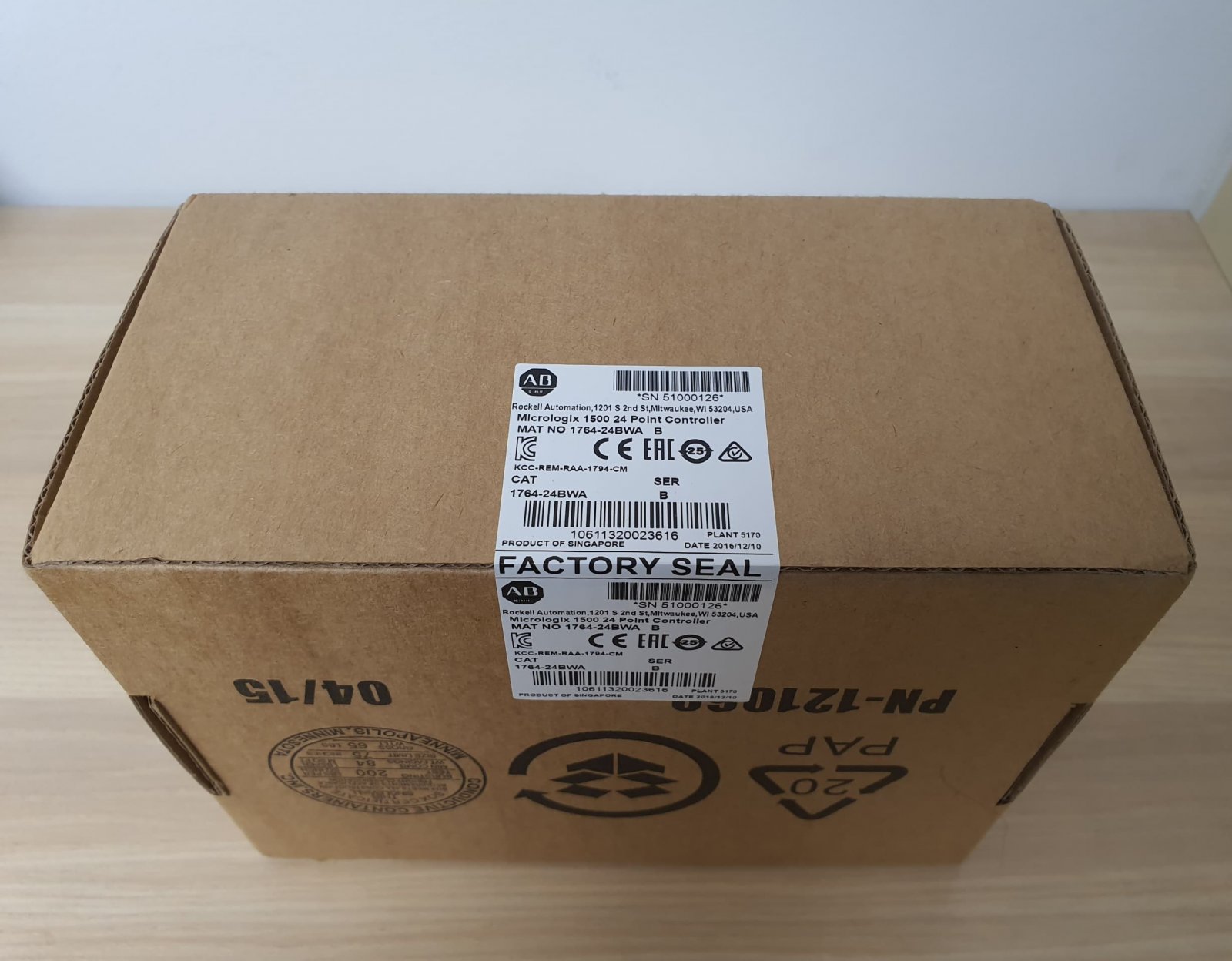

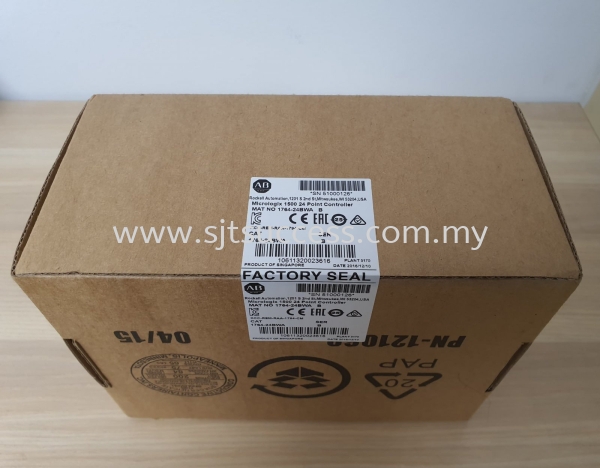

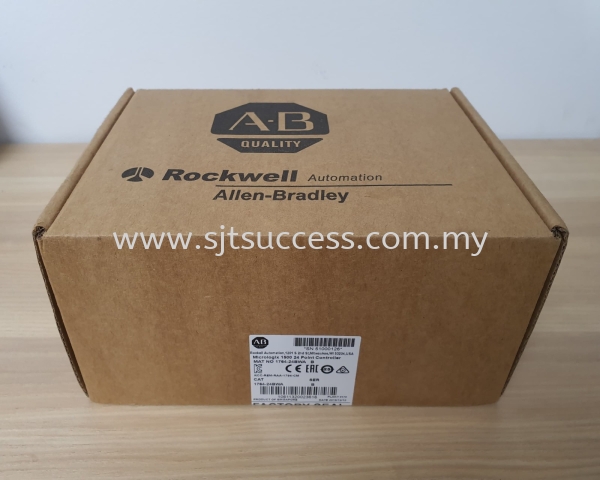

Allen Bradley 1764-24BWA 24 Point Controller Malaysia
Description: The 1764-24BWA is a MicroLogix 1500 base unit that belongs to the Bulletin 1764 product family. It has a line power voltage requirement of 85-265 VAC, integrated Eight (8) 24VDC sink/source discrete inputs, Four (4) High-Speed inputs and Twelve (12) Relay Outputs. It has integrated RS232 communication ports for device communication
Technical Specifications for 1764-24BWA
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Series | MicroLogix 1500 |
| Part Number/Catalog No. | 1764-24BWA |
| Function | Base Controller |
| I/O Rating | 12 inputs/ 12 outputs |
| Module Type | Base Unit |
| No. of Inputs | 12 inputs |
| Input channel Voltage | 24V dc, sink/source |
| Input Voltage | 24 Volts DC |
| Output Source | Relay Port |
| No. of Outputs | 12 outputs |
| Input Circuit Type | 24 Volt DC Sink/Source |
| Max Expanded I/O Count | 512 |
| Output channel Voltage | 24-125VDC; 120-240VAC |
| Operating Frequency | 0 to 20 kHz |
| Line Power | 85 to 265 Volts AC |
| Power Supply Voltage | 85-265 VAC |
| Dimensions | 5.43 x 6.62 x 3.43 inches |
| Mounting | Horizontal |
| Temperature Rating | 32 to 131 degrees Fahrenheit |
| Compatible Processors | 1764-LSP and 1764-LRP |
| Ports | RS-232 Serial Ports |
| Memory Modules | This unit is compatible with (1764-MM1-MM4) Memory Modules |
| Time Clock | 1764-RTC or 1764-MM1RTC |
| Required Processor | 1764-LRP or 1764-LSP |
