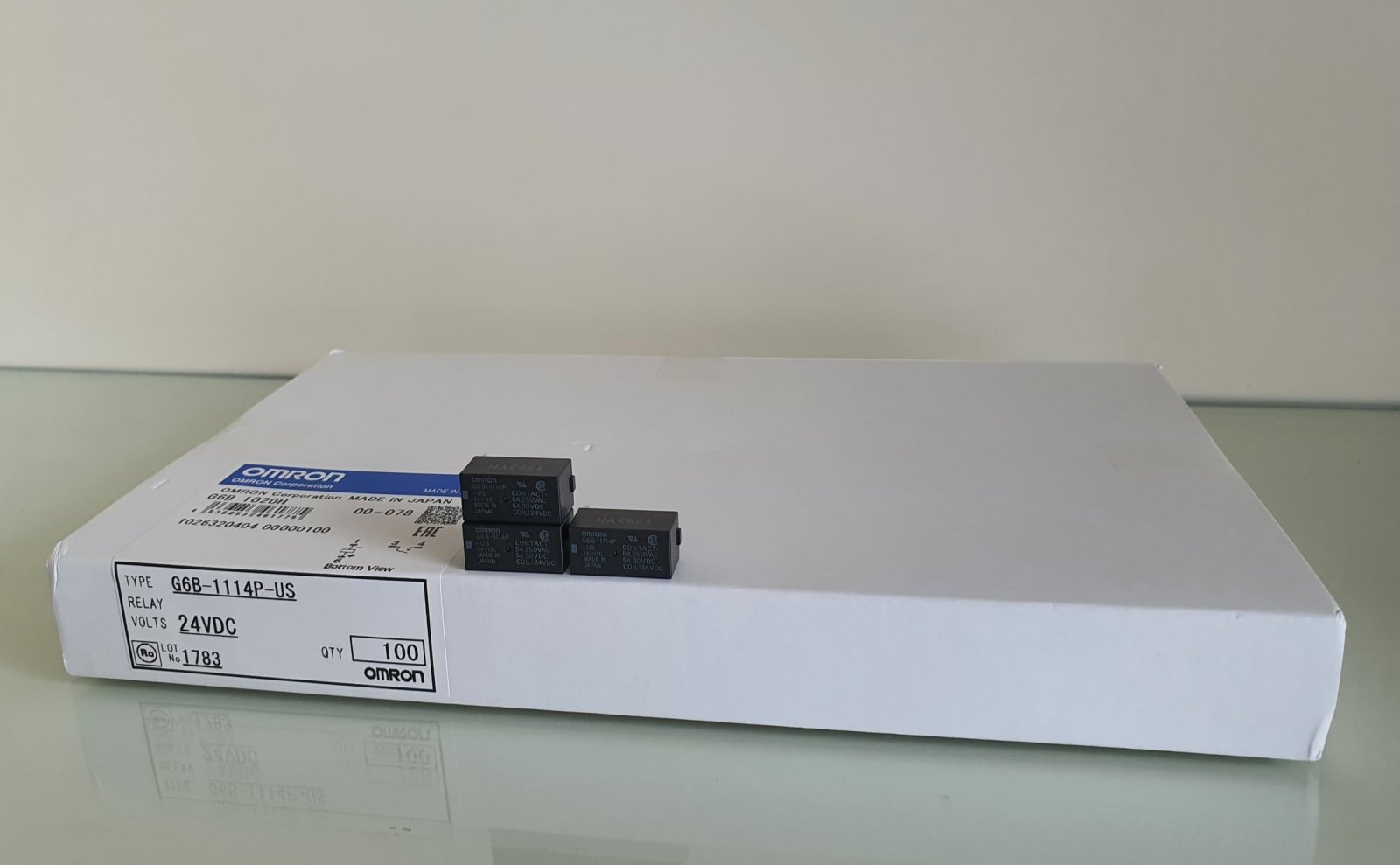

OMRON G6B-1114P-US 24VDC RELAY MALAYSIA
Product Details
Omron Relay
The Omron G6B series PCB mount non-latching subminiature relay has a contact configuration of SPNO. It is actuated with 24VDC coil voltage and 5A switching current. This relay has a unique moving loop armature that aids in the reduction of relay size, magnetic interference and contact bounce time. It has a high capacity, high dielectric strength, fully sealed devices with an impulse withstand voltage of 6kV. This relay is ideal for output applications of the control panel.
Features and Benefits
Low 200mW power consumption
Coil power is 200mW
Coil resistance is 2.88Kohm
Through hole mount
Coil power is 200mW
Coil resistance is 2.88Kohm
Through hole mount
Certifications
UL recognised
CSA certified
CSA certified
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
| Coil Voltage | 24V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Through Hole |
| Length | 21mm |
| Coil Resistance | 2.88 kΩ |
| Coil Power | 200mW |
| Life | 50000000 (Electrical) cycles |
| Height | 10mm |
| Minimum Operating Temperature | -25°C |
| Contact Material | Silver |
| Depth | 10mm |
| Series | G6B |
| Maximum Operating Temperature | +70°C |
| Isolation Coil To Contact | 3kV ac |
| Maximum Switching Power DC | 150 W |
| Maximum Switching Power AC | 1.25 kVA |
| Application | Power |
