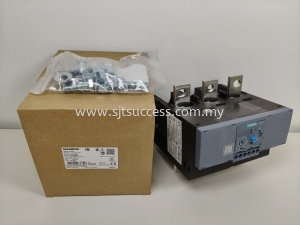

Specifications Commercial data Technical data       Product related Article number 3RB2066-1MC2 Life cycle status Active Product Product Family SIRIUS 3RB electronic overload relays EAN 4011209638396 UPC – Commodity Code 85364900 Pricing related Customer Price – List Price – Region Specific Price Group / Headquarter Price Group 41G / 41G Surcharge for raw material – Metal Factor – Delivery related Export Control Regulations AL : N / ECCN : N Standard delivery time 3 Day/Days Packaging dimensions (L x W x H) 156,00 x 154,00 x 177,00 mm Net weight 1,826 Kg Quantity Unit 1 Piece Packaging Quantity 1 Minimum Order Quantity 1 Dangerous goods No Environment related WEEE (2012/19/EU) Take-Back Obligations Yes Compliance with the substance restrictions according to RoHS directive Since: 01.07.2006 REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0,1 % (w / w) Lead monoxide (lead oxide) CAS-No. 1317-36-8 > 0,1 % (w / w) 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 > 0,1 % (w / w) Melamine CAS-No. 108-78-1 > 0,1 % (w / w) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol lblREACHCasNo0237 > 0,1 % (w / w) SCIP Number 622a135e-5b65-41d8-8a55-07443a38d427 Siemens specific Product Group 5808 Catalog ID CC-IC10 Group Code R711 Country of origin Germany read more

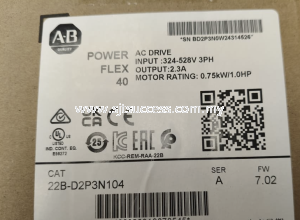

PowerFlex 40 AC Drive, 380...480V AC, 3PH, 2.3 Amps, 0.75 kW, 1 HP,Frame Size B, Panel Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 Technical Specifications                               General                                                    Other                       General Frequency Rating 50-60 Power Factor 0.98 PowerFlexAC Drive 0.75 kw read more

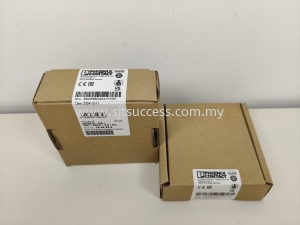

AC operation Input voltage range 100 V AC ... 240 V AC -15 % ... +10 % Electric strength, max. 300 V AC 30 s Typical national grid voltage 120 V AC 230 V AC Voltage type of supply voltage AC Inrush current typ. 10 A (at 25 °C) Inrush current integral (I2t) < 0.1 A2s Inrush current limitation 4.3 A (after 1 ms) < 10 A Frequency range (fN) 50 Hz ... 60 Hz -10 % ... +10 % 16.7 Hz (acc. to EN 50163) Mains buffering time typ. 54 ms (120 V AC) typ. 54 ms (230 V AC) Current consumption 0.85 A (100 V AC) 0.7 A (120 V AC) 0.39 A (230 V AC) 0.37 A (240 V AC) Nominal power consumption 71 VA Protective circuit Transient surge protection; Varistor Typical response time 500 ms Input fuse 3.15 A (slow-blow, internal) Recommended breaker for input protection 6 A ... 16 A (Characteristic B, C or comparable) Discharge current to PE < 0.25 mA (264 V AC, 60 Hz) 0.22 mA (264 V AC, 60 Hz) DC operation Input voltage range 110 V DC ... 250 V DC -20 % ... +40 % Voltage type of supply voltage DC Current consumption 0.75 A (110 V DC) 0.33 A (250 V DC) Efficiency typ. 91.9 % (120 V AC) typ. 92.6 % (230 V AC) Output characteristic U/I Advanced Nominal output voltage 24 V DC Setting range of the output voltage (USet) 24 V DC ... 28 V DC (constant capacity) Nominal output current (IN) 2.5 A Static Boost (IStat.Boost) 3.125 A (≤ 40 °C) Dynamic Boost (IDyn.Boost) 5 A (≤60 °C (5 s), Input <150 V AC Derating 0.5 %/V) Derating > 60 °C (2.5 %/K) Feedback voltage resistance ≤ 35 V DC Protection against overvoltage at the output (OVP) ≤ 32 V DC Control deviation < 0.5 % (Static load change 10 % ... 90 %) < 2 % (Dynamic load change 10 % ... 90 %, (10 Hz)) < 0.1 % (change in input voltage ±10 %) Residual ripple < 40 mVPP (with nominal values) Short-circuit-proof yes No-load proof yes Output power 60 W 75 W 120 W Maximum no-load power dissipation < 1 W (230 V AC) < 1 W (120 V AC) Power loss nominal load max. < 5 W (230 V AC) < 5 W (120 V AC) Crest factor typ. 1.69 (120 V AC) typ. 1,82 (230 V AC) Rise time 50 ms (UOut = 10 % ... 90 %) Connection in parallel yes, for redundancy and increased capacity Connection in series yes read more

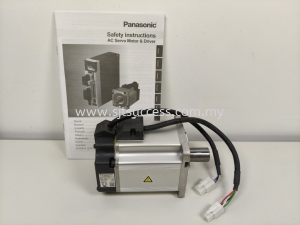

Item Specifications Part Number MSMF012L1S2 Product details Low inertia, Lead wire type Family Name MINAS A6 Series MSMF Series Type Low inertia Protection class IP65 About Enclosure Except rotating portion of output shaft and leadwire end. Environmental Conditions For more details, please refer to the instruction manual. Flange sq. dimension 38 mm sq. Flange size (mm) 38 Motor lead-out configuration Lead wire Motor encoder connector Lead wire Power supply capacity (kVA) 0.5 Voltage specifications (V) 200 Rated output (W) 100 Rated current [Reference value] (A rms) 1.1 Holding brake without Mass (kg) 0.47 Oil seal without Shaft Key-way, center tap Rated torque (N ⋅ m) 0.32 Continuous stall torque (N ⋅ m) 0.32 Momentary Max. peak torque (N ⋅ m) 0.95 Max. current [Reference value] (A 0-p) 4.7 Regenerative brake frequency (times/min) Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4281 About regenerative brake frequency Please refer to the details of [Motor Specification Description] , Note: 1, and 2. Rated rotational speed (r/min) 3000 Max. rotational speed (r/min) 6000 Inertia of rotor ( x10-4 kg ⋅ m²) 0.048 Recommended inertia ratio 30 times or less About recommended moment of inertia ratio of the load and the rotor Please refer to the details of [Motor Specification Description] ,Note: 3. Rotary encoder: specifications 23-bit Absolute/Incremental system Notice When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. Rotary encoder: Resolution 8388608 read more

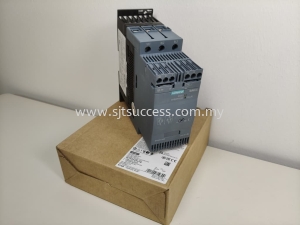

Specifications Commercial data Technical data       Product related Article number 3RW3038-1BB04 Life cycle status Active Product Product Family 3RW30 soft starters EAN 4011209719309 UPC 754554958149 Commodity Code 85371098 Pricing related Customer Price – List Price – Region Specific Price Group / Headquarter Price Group 42G / 42G Surcharge for raw material – Metal Factor LBO----- Delivery related Export Control Regulations AL : N / ECCN : N Standard delivery time 3 Day/Days Packaging dimensions (L x W x H) 198,00 x 165,00 x 71,00 mm Net weight 1,162 Kg Quantity Unit 1 Piece Packaging Quantity 1 Minimum Order Quantity 1 Dangerous goods No Environment related WEEE (2012/19/EU) Take-Back Obligations Yes Compliance with the substance restrictions according to RoHS directive Since: 01.05.2012 REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0,1 % (w / w) Lead monoxide (lead oxide) CAS-No. 1317-36-8 > 0,1 % (w / w) 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 > 0,1 % (w / w) Melamine CAS-No. 108-78-1 > 0,1 % (w / w) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol lblREACHCasNo0237 > 0,1 % (w / w) Diboron trioxide CAS-No. 1303-86-2 > 0,1 % (w / w) SCIP Number 86c9b2d9-d79e-4ee3-a7d7-e8320b030767 Siemens specific Product Group 5345 Catalog ID CC-IC10 Group Code R711 Country of origin Czech Republic read more

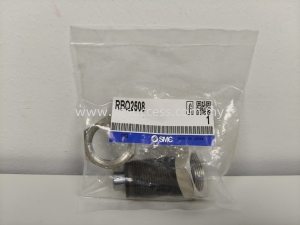

The RQ series new air cushion construction allows this series to retain the merits of a compact cylinder. The unique air cushion construction eliminates the cushion ring used in conventional type air cushions, which reduces the overall length of the cylinder. The RQ series meets the demands for reduced shock, noise reduction and improved repeatability at the stroke end. Unique air cushion construction with no cushion ring Wide size variations from 20 to 100 Nearly three times the allowable kinetic energy Improved noise reduction * and repeatability Interchangeable mounting SMC Part Description: tab 4 SHOCK ABSORBER, SHORT TYPE SMC Products Line:tab 5 ACTUATOR   SMC Class Description:tab 8 RB SHOCK ABSORBER, 8MM STROKE Weight:tab 9 .31761 lb read more

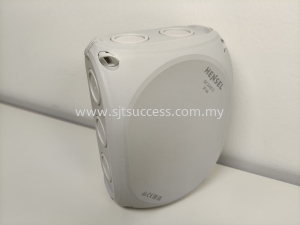

Rated insulation voltage: Ui = 1000 V Cable entries: 10 elastic membranes M25, M32 9 mm - 21 mm wall 2 elastic membranes without 9 mm - 20 mm bottom Type of lid fastening: Quick locking: opening and closing by quarter turn, locked position well visible (open - locked) Delivered accessories: external brackets, retaining strap, sealing plug IP degree of protection: IP66 Impact strength: IK07 Sealable without accessories: Yes Application area: Indoor installation Maximum ambient temperature 24 h: 35 °C Ambient temperature: -25 °C up to +40 °C Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C Material: Polypropylene Glow wire test according to IEC 60695-2-11: 750 °C UL 94: V-2 Temperature resistance: -25 °C up to +80 °C Halogen-free: Yes Silicone-free: Yes Height: 130 mm Width: 180 mm Depth: 77 mm Net weight: 0.241 kg Mounting height: 97 mm Mounting width: 150 mm Mounting depth: 62 mm read more

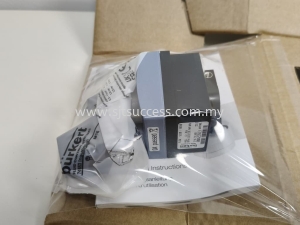

Sensor Sensor type Paddle wheel / oval gear Paddle wheel measuring principle detection Hall Measurand Flow rate (volume) Yes Flow rate (mass) No Temperature No Density No Concentration 1 No Precision of volume flow rate in relation to reading 1 % Voltage / Frequency Battery voltage No DC voltage min 12 V DC voltage max 36 V Materials Cover material PC (polycarbonate) Electronics body material category Plastics Electronics body material PC (Polycarbonate) Electronics body encapsulated Resin Process Pressure / Temperature Temperature medium min -15 °C Temperature medium max 100 °C Temperature environment min -15 °C Temperature environment max 60 °C Input / Output Output 1 digital type Transistor Digital output 1 transistor contactless 0,1 A Output 1 digital transistor connection NPN Yes Output 1 digital transistor connection PNP No Output 2 digital type Transistor Output 2 digital transistor connection NPN No Output 2 digital transistor connection PNP Yes Digital output 2 transistor contactless 0,1 A Features Continuous measurement Yes Dosing No Switch No Parametrisation local No Parametrisation separate No Parametrisation fixed No Properties Type SE30 Product sub-group Flow rate Construction device Bayonet Elektronic Fitting electronic interface Inline Electrical Port Connection Electrical connection 1 type Plug pattern form A according to DIN EN 175301-803 Electrical connection 1 quantity 1 PCE Electrical connection 1 number of contacts 4 PCE Cable plug in delivery enclosed Cable plug art. no. - type 00572264 - 2518 Software / Communication Display type no display Protection Type Protection class measurement device (IP) IP65 read more

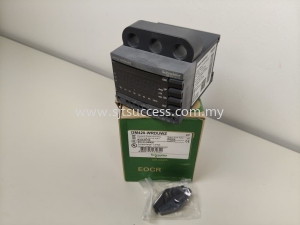

Schneider I3M420-WRDUWZ Relay Malaysia read more
